ACT10 Codelock Digital Keypad, 2 Doors, 10 Codes, 2 Groups
£79.27 (inc VAT: £95.12)
Summary

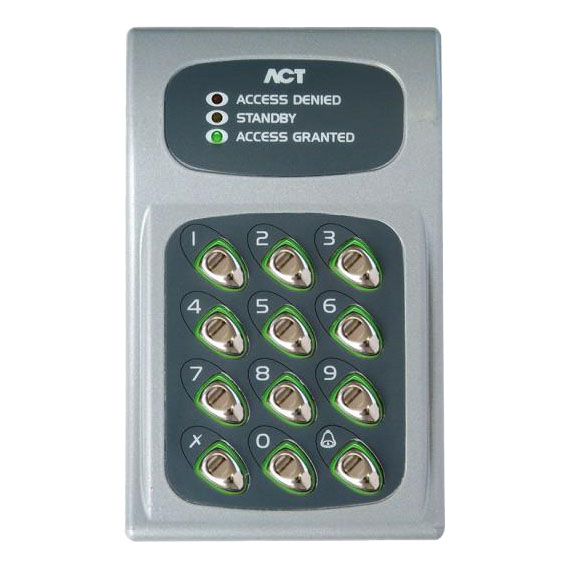

The ACT10 digital keypad is a robust and durable unit crafted from vandal-resistant die-cast zinc with backlit stainless steel keys. This versatile keypad is ideal for access control, door monitoring, and interlock applications.
Key Features
- 10 user codes
- 2 output relays
- 2 doors, 2 user groups
- Interlock, fire alarm input, door monitoring
- Surface or flush mount options
- Indoor or outdoor (IP54)
- Zinc die-cast housing, stainless steel keys
- Front and back tamper protection
- Backlit keypad
Specifications
- Operating Voltage : 12 to 24 Volts AC or DC
- Current Consumption : 40mA (nominal), 120mA (max)
- Operating Temperature : -40°C to +70°C
- Door Open Time : 0 – 255 seconds
- Relay Contact Rating : 5A / 50 Vac
- Weight : 700g
- Dimensions (H x W x D) : 138 x 87 x 37 mm
- Mounting : Surface / flush
- Installation : Indoor / outdoor
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.25 kg |
|---|
