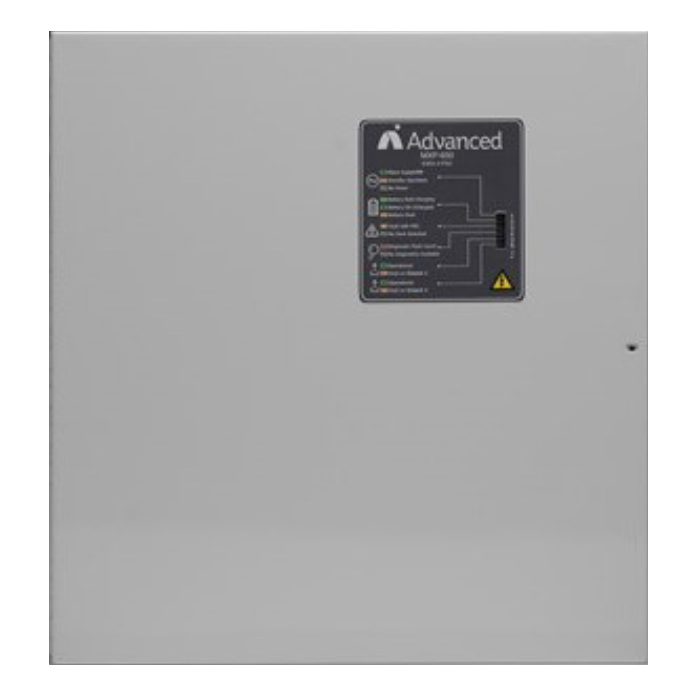

Advanced MXP-651 5A Boxed Power Supply
Key features
- 5A output
- Housing fits 2 x 17Ah batteries or 2 x 24Ah/38Ah batteries (deep version)
- A range of power supply equipment with power output options to suit most applications
- Universal AC input
Downloads
Summary
The Advanced MXP-651 is a 5A power supply unit which can be used for any fire alarm system, including AOV systems. They are certified to EN54-4 by VdS and EN12101-10 by AFNOR, ensuring reliable and safe operation.
View full overview Show less
Suited for almost any application, the power supply unit and battery charger have been developed using the latest technology to provide a high-efficiency switch-mode power supply.
The units include intelligent battery charging technology, mains and battery monitoring including two independent volt-free outputs. In addition, they also provide deep battery discharge protection in case of a prolonged mains failure.
The inclusion of LED indicators provides quick status diagnostics of the power supply.
These power supply units complement the MXP-549 1.5A model.
Features
- 5A output
- Housing fits 2 x 17Ah batteries or 2 x 24Ah/38Ah batteries (deep version)
- A range of power supply equipment with power output options to suit most applications
- Universal AC input
- Independently monitored dual outputs of 27.6Vdc
- High-efficiency switched mode power supplies
- Alternative enclosure sizes to support standby battery backup options
- Exterior status LEDs to support diagnostics
- Load-sharing, supporting either rapid charging or brief high-current peak-loads
- No output interruption during automatic switchover between mains and battery power
- Deep discharge protection disconnects battery from load when output voltage falls below 21.6V
- Self-resetting battery fuse protection
Specifications
- Input Supply : 195V – 265V AC, 50Hz nominal
- Output Voltage : 21.6V DC (Umin)* – 28.8V DC (Umax)**
- Output Current : 5.7A continuous load (ImaxB), 4.0A battery charge (ImaxA) – based on 24Ah batteries
- Note: These values will vary depending on connected batteries and EN12101-10 functionality, refer to Install Manual for further information
- Inrush Current : 25A max at 25 °C 230V AC for 10ms
- Fuse (Mains) : T3.15 A 20mm 250V ac HRC (IEC 60127-2 type)
- Dimensions (HxWxD) :
- Large Enclosure : 420x400x80mm (space for up to 2 x 17Ah batteries)
- Deep Enclosure : 420x420x180mm (space for 2 x 24Ah or 38Ah batteries)
- Recommended Battery Manufacturers :
- Powersonic
- Yuasa
- Interlogix
- Europa
- Weight :
- Large Enclosure : 5.8kg
- Deep Enclosure : 9.7kg
- Material / Colour : 1.2 mm steel / RAL7035
- Environment : Indoor use only – IP30
- Temperature :
- Operational: -10°C to 40°C at 95% RH
- Storage: -20 to +80°C
- Fault Output : Volt-free change-over contacts (SPDT) rated 1A @ 30V DC (all models)
- Status Indication :
- Mains
- Battery Fault
- PSU Fault
- Diagnostic
- Output 1
- Output 2
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Output | 5A |
| Maximum Batteries | 2x 17Ah, 2x 24Ah |
| Device Type |
