AirSense ModuLaser with Command Display Module
£1,459.33 (inc VAT: £1,751.20)
Summary

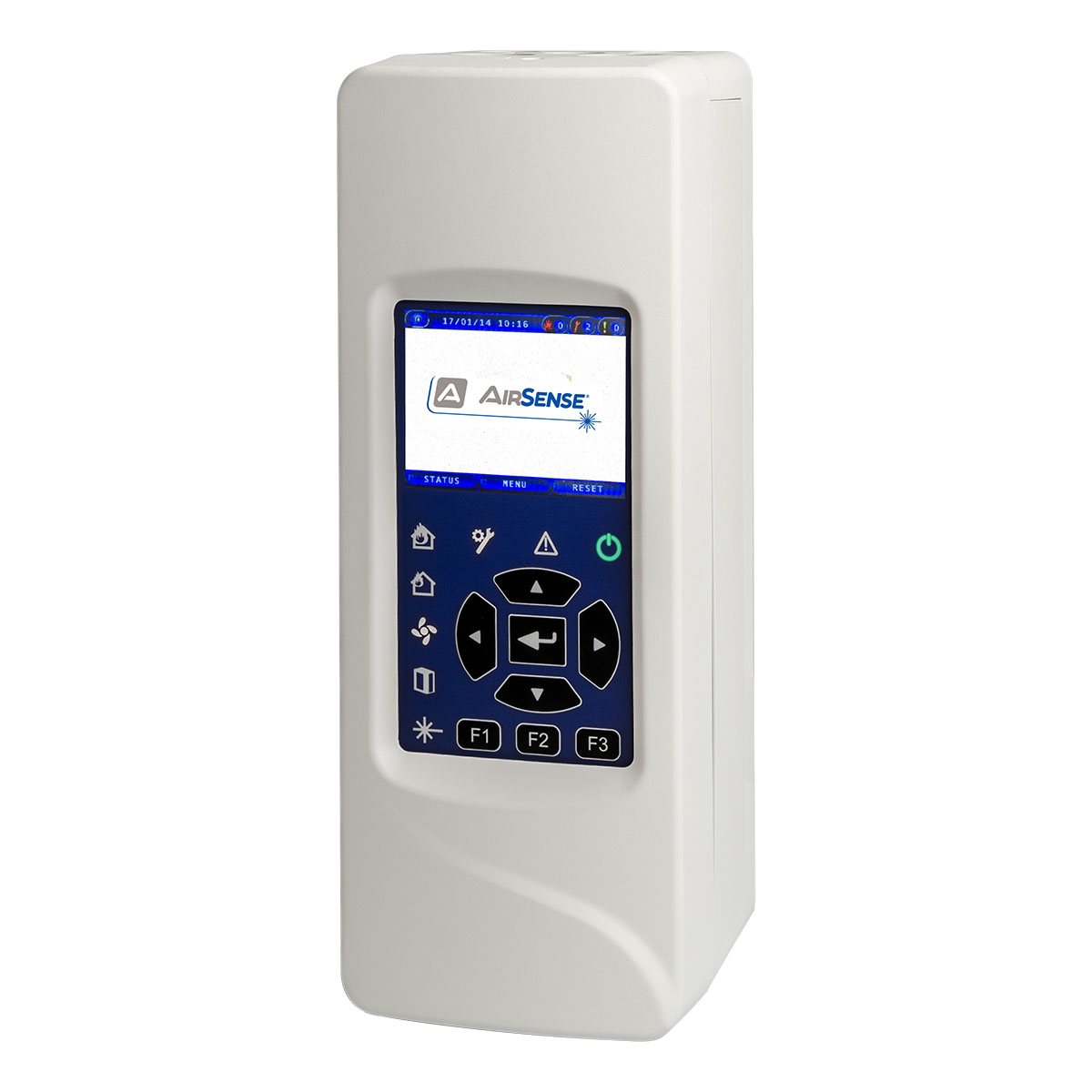

The AirSense ModuLaser Command Display Module is a scalable aspirating smoke detection solution designed to simplify installation and maintenance while extending the capabilities of traditional air sampling detectors. The system consists of display and detector modules, which communicate via RS-485 interconnections. The Command Display Module features a user-friendly interface with a TFT color display, navigation buttons, and status LEDs, allowing for easy configuration and monitoring.
This module supports up to 127 modules across the SenseNET network, including combinations of ModuLaser modules, Micra’s, and HSSD2’s. It serves as a central point for accessing all modules/detectors on the network, reporting all alarms and faults. ModuLaser is ideal for hostile environments due to its advanced features that resist dust and dirt, providing early warning capabilities without nuisance alarms.
Features
- Modular design for efficient zoning
- Zoned aspirating smoke detection
- Simplified installation with docking station
- Intuitive user interface
- Quick fit pipe adaptor system
Specifications
- Physical Dimensions : 110.5 x 133.5 x 300 mm (4.35 x 5.25 x 11.8 in)
- Status Indication : LED’s
- Alarm Levels : 4, Aux, Pre-alarm, Alarm and Alarm 2
- Net Weight : Display Module: 1.18 kg (2.6 lb.), Detector Module: 1.57 kg (3.46 lb.)
- Event Log : 20,000 events per module
- Colour : Cream
- RS485 Support : Yes (SenseNET and SenseNET+)
- Mounting Type : Surface mount
- Connectivity : USB (x2), IP and APIC on Display Module, with Modbus on Command Display Module
- Cable Entries : 2 at the bottom, 2 at the rear, 2 at the top on Detector Module, and 3 at the top on the Display Module
- Operating Voltage : 18 to 30 VDC
- Current Consumption : Display Module (at 24 VDC): 204 mA (Minimum), 232 mA (Standard), 232 mA – Command; Detector Module (at 24 VDC): 260 mA (fan speed 1), 380 mA (fan speed 6, default), 940 mA (fan speed 16)
- Cable Entry Size : 20 mm (0.5 in) – top and bottom
- Detector Module Orientation : Vertical (0 or 180 deg)
- Operating Temperature : Equipment: -20 to +60°C (-4 to +140°F), Sampled air: -20 to +60°C (-4 to +140°F)
- Relative Humidity : 0 to 95% noncondensing
- Detection Principle : Laser light scattering mass detection and particle evaluation
- Particle Sensitivity Range : 0.003 to 10 microns
- Environment : Indoor
- IP Rating : IP40
- Sampling Pipe Length : Up to 250 m (820 ft.) combined per detector module
- Regulatory Compliance : REACH, RoHS
- Certification : BOSEC, CPR, CSIRO, EN54-20, LPCB, VdS
- Quantity Sampling Holes : Up to 20 – Class A per detector module, Up to 40 – Class B per detector module, Up to 50 – Class C per detector module
- Chart Recorder Inlet Size : 27 or 25 mm (1.06 or 0.98 in) outer diameter
- Sampling Period : Adjustable between 1 s and 60 s
- Inlet Location : Top or bottom
- Capacity : 1 month @ 1 s / Up to 5 years @ 60 s
- Exhaust Size : 27 or 25 mm (1.06 or 0.98 in) outer diameter
- Exhaust Location : Top or bottom
- Inlet Quantity : 1 per detector module
- Input Quantity : 2 per module
- Input Type and Rating : Supervised
- Termination : 15 KΩ 5% 1/4 W
- Programmable : Yes
- Output Quantity : 3 per module
- Output Type and Rating : Voltage free (contact rating 2 A at 30 VDC / NO/NC/C)
- Programmable : Yes
Downloads
- Datasheet (Adobe PDF)
