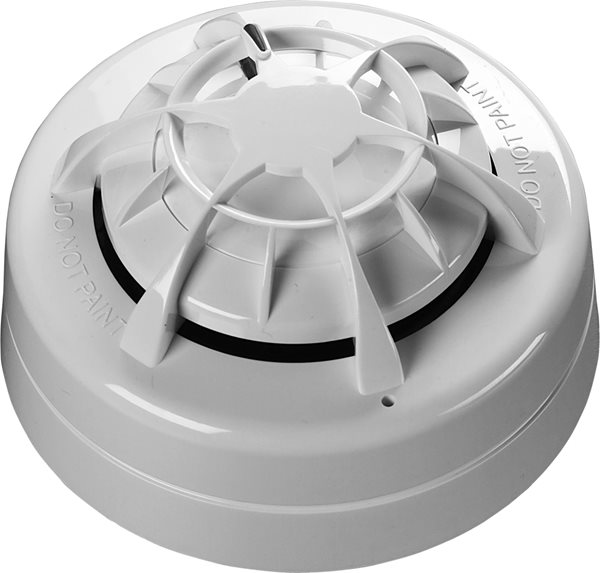

Apollo Orbis Conventional Multisensor Detector
£20.54
Summary
The Orbis Optical/Heat Multisensor Detector is designed for enhanced fire detection, particularly in environments where fast-burning, flaming fires are a concern. This advanced detector combines the capabilities of both optical and heat detection technologies, making it a versatile choice for various applications. With its dual-sensor system, it effectively responds to smoke and heat, ensuring reliable performance in critical situations.
Equipped with features like automatic drift compensation and transient rejection algorithms, the Orbis detector minimises false alarms while maintaining high sensitivity. Its user-friendly design includes visual indicators for operational status and maintenance alerts, making it an ideal solution for comprehensive fire safety management.
Features
- Two sensors for smoke and heat detection
- Alarm decision derived from either sensor or combination of both
- Red flashing LED at startup confirms device operation
- Yellow flashing LED indicates faulty operation
- FasTest™ functionality tests detectors in just four seconds
- Integral indicator with 360º visibility
- IP44 rated for dust and water resistance
- Wide operating temperature range from -40ºC to +70ºC
Specifications
- Detection Principle : Smoke: Photo-electric Detection of Light Scattered by Smoke Particles, Heat: Temperature-dependent Resistances
- Operating Voltage : 24 V
- Power Up Time : < 20 Seconds
- Average Quiescent Current : 95 µA at 24 V
- Alarm Current :
- 12 V : 20 mA
- 24 V : 40 mA
- Alarm Load : 600 Ω
- Holding Voltage : Minimum Holding Current 8 mA
- Alarm Reset Voltage : < 1 V
- Alarm Reset Time : One Second
- Operating and Storage Temperature : -40ºC to +70ºC
- Humidity : 0% to 98% RH (No Condensation or Icing)
- IP Rating : IP44
- Dimensions : 97 mm Diameter x 31 mm Height
- Weight : 75 g
- Materials : Housing: White Flame-retardant Polycarbonate, Terminals: Nickel Plated Stainless Steel
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.08 kg |
|---|---|
| Colour | |
| Detection Type | |
| Device Type | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| System Type | |
| Flashing LED | No, Yes |
