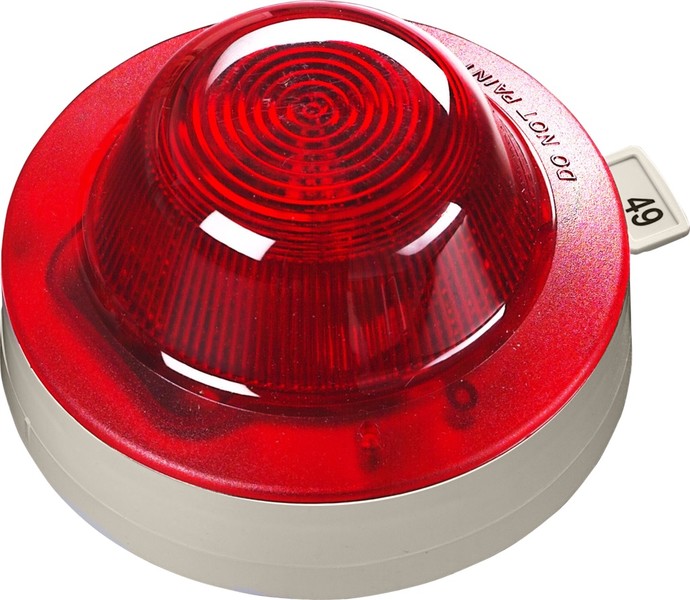

Apollo XP95 Addressable Open-Area VID
Summary
The Apollo Loop-Powered Visual Indicator is designed to enhance fire alarm systems by providing a visual alert in conjunction with sounders. This device is particularly useful in environments where sounders may not be heard, such as in theaters, hospitals, and studios. With its high-intensity LEDs and robust construction, the visual indicator ensures reliable performance and visibility in various conditions.
Compatible with XP95, Discovery, and CoreProtocol systems, this visual indicator can be easily integrated into existing fire detection systems, making it a versatile choice for enhancing safety.
Features
- Supply Voltage: 17-28 V DC
- Current Consumption at 24V DC: Quiescent 150 µA, Beacon Operated 3 mA, Switch-On Surge 1 mA for 100 ms
- Operating Temperature: -20°C to +60°C
- Humidity: 0-95% RH (no condensation or icing)
- Dimensions: 115 mm Diameter x 38 mm Height
- Weight: 140 g
- Materials: Body – White Flame-Retardant Polycarbonate with Nickel Plated Stainless Steel Contacts; Diffuser – Translucent Polycarbonate
Specifications
- Supply Voltage : 17-28 V DC
- Current Consumption at 24V DC : Quiescent 150 µA, Beacon Operated 3 mA, Switch-On Surge 1 mA for 100 ms
- Operating Temperature : -20°C to +60°C
- Humidity : 0-95% RH (no condensation or icing)
- Dimensions : 115 mm Diameter x 38 mm Height
- Weight : 140 g
- Materials : Body – White Flame-Retardant Polycarbonate with Nickel Plated Stainless Steel Contacts; Diffuser – Translucent Polycarbonate
Downloads
- Datasheet (Adobe PDF)
