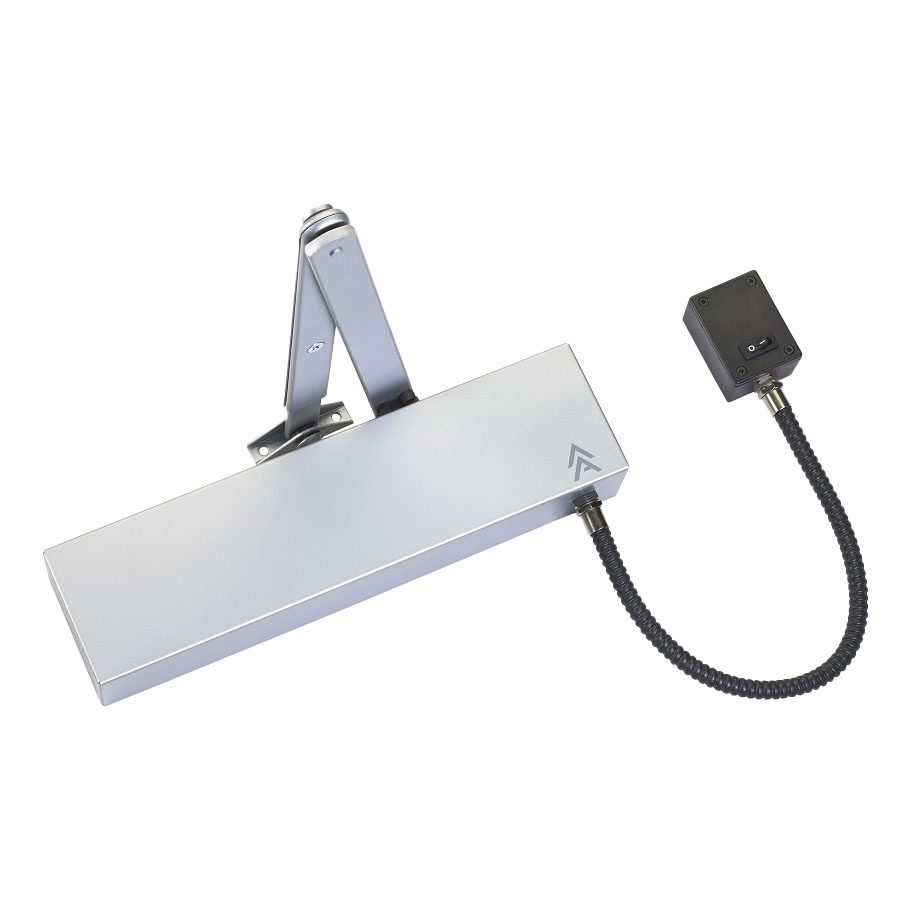

Freeman & Pardoe Arrow Series 600 Electromagnetic Door Closer | Hold Open & Swing Free

SKU: 4e084dbb01a6
SKU: 4e084dbb01a6 Category: Brand:

Key features

  • Closes when the 24V supply is interrupted
  • Adjustable closing speed and latch action
  • Model-specific sizing for the fitting position

Downloads

Summary

The Freeman & Pardoe Arrow Series 600 electromagnetic door closer can be configured for hold-open or swing-free operation, with the 24V supply interrupted by the fire alarm system to release the door for closing. Hold-open operation keeps a door open after the mechanism engages; swing-free operation lets you move the door freely during normal use.

View full overview Show less

Choose between 623EM, 624EM and 625EM in the model selector. For Figure 1 door-mounted pull-side fitting, these are power sizes 3, 4 and 5 respectively, with maximum door weights of 60kg, 80kg and 100kg and maximum widths of 950mm, 1100mm and 1250mm. The model comparison in Specifications puts those limits together so you can check both weight and width.

For Figure 6 push-side fitting on a suitable universal version, the manufacturer rates the 624 at size 3, up to 60kg and 950mm, and the 625 at size 4, up to 80kg and 1100mm. Do not carry the pull-side rating across to that installation. Check the exact fitting version and its instructions before choosing a push-side or transom-mounted arrangement.

Closing speed and latch action are adjustable so you can commission the closer for the installed door. Follow the correct fitting template and test door closing and alarm release after installation, including the effect of hinges, seals and latches.

Features

  • Two operating configurations - set the arm and cam for hold-open or swing-free operation to suit how the door is used
  • Alarm-controlled release - interruption of the 24V supply releases the electromagnetic mechanism for door closing when correctly installed
  • Installation-specific selection - choose 623EM, 624EM or 625EM against the power rating for the intended mounting position
  • Adjustable closing action - separate speed and latch adjustments support commissioning of the installed door
  • Scissor-arm construction - surface-mounted closer body with the arm arrangement selected for the fitting and operating mode
  • Door-by-door commissioning - test release and closing after fitting rather than relying on the model rating alone

FAQ

Which model should I choose: 623EM, 624EM or 625EM?

For Figure 1 pull-side fitting, 623EM is size 3 for doors up to 60kg and 950mm wide, 624EM is size 4 up to 80kg and 1100mm, and 625EM is size 5 up to 100kg and 1250mm. These limits apply together, rather than letting you choose on weight alone. A push-side arrangement can reduce the effective power size, so use the rating for the intended fitting before ordering.


What is the difference between hold-open and swing-free?

Hold-open mode holds the door open after the mechanism engages; the manufacturer’s datasheet describes engagement after opening beyond 80° with power applied. Swing-free mode lets the door move freely during normal use after the mechanism has been set. Both rely on the correct arm and cam configuration and an alarm-controlled interruption of the supply to release the door for closing.


Can every model be fitted on the push side?

Do not assume that every Series 600 fitting version is interchangeable. Freeman & Pardoe distinguishes universal versions from Figure 1/61 versions, and its support guidance identifies the mode selector on bodies that permit Figure 6 push-side fitting. The datasheet gives 624 size 3 and 625 size 4 for that arrangement; confirm the exact version and use its template before selecting a push-side installation.


What power supply does the closer require?

The manufacturer’s fitting instructions specify 24V DC, 2W and 0.085A per closer. The supply and fire alarm interface must be arranged to interrupt power for release, with cable length, voltage drop and the number of connected closers considered in the design. Test that interruption of the supply releases the mechanism and that the door closes correctly after installation.


Does the stated fire-test duration give any fitted door that rating?

No. The manufacturer states the range’s test duration, but the suitability of a closer on a particular fire or smoke door depends on the doorset evidence and the permitted fitting arrangement. Freeman & Pardoe’s declaration makes use on compartmentation doors conditional on following its fitting instructions. Check the doorset requirements and installation details rather than treating the closer’s test figure as a rating for the complete door.


Does swing-free operation guarantee an accessible door?

Swing-free operation removes the closer’s normal opening resistance once the mechanism has been set, but the complete installed door still needs assessment. The maker recommends testing and adjusting opening and closing forces with a force meter, and checking hinges, seals and other causes of resistance or failure to close. Select the correct power and mounting arrangement, then commission the complete door.


Specifications

Pull-side model comparison - Figure 1

623EMPower size 3; maximum door weight 60kg; maximum door width 950mm; maximum opening 180°
624EMPower size 4; maximum door weight 80kg; maximum door width 1100mm; maximum opening 110°
625EMPower size 5; maximum door weight 100kg; maximum door width 1250mm; maximum opening 110°

Shared specification and fitting-dependent details

Product TypeArrow Series 600 surface-mounted electromagnetic scissor-arm door closer
Models On This Listing623EM, 624EM and 625EM
Operating ModesHold-open or swing-free, configured using the correct arm and cam arrangement
Supply Voltage24V DC
Power Consumption2W per closer (manufacturer fitting instructions)
Current Consumption0.085A per closer (manufacturer fitting instructions)
Release MethodInterruption of the electrical supply; correct fire alarm interfacing and commissioning required
Hold-Open EngagementBeyond 80° with power applied, as described in the manufacturer datasheet
AdjustmentsClosing speed and latch action
Fitting SelectionFigure 1 pull side; Figure 6 push side requires a suitable universal version and its rated configuration; verify the exact version for Figure 61 transom mounting
ConstructionExtruded aluminium and steel
ManufactureMade in Britain
Standards And Fire-Test ReferenceManufacturer lists BS EN 1154 (mechanical), BS EN 1155 (electrical) and BS EN 1634 (fire test); datasheet states 120 minutes fire tested. Suitability depends on the doorset and fitting evidence
Dimension ReferenceBody and cover dimensions below follow the manufacturer datasheet; check the fitting template and supplied body/cover for replacement clearance
Body WeightManufacturer datasheet lists 2.3kg / 2.35kg, variable by model
Universal Push-Side Power Size (per model)Figure 6 datasheet ratings: 624EM size 3; 625EM size 4. Confirm the exact fitting version before use
Universal Push-Side Maximum Door Weight (per model)Figure 6 datasheet ratings: 624EM 60kg; 625EM 80kg
Universal Push-Side Maximum Door Width (per model)Figure 6 datasheet ratings: 624EM 950mm; 625EM 1100mm
Body Dimensions (per model)Datasheet, L x H x D: 623EM and 624EM 278 x 60 x 47mm; 625EM 330 x 60 x 47mm
Square Cover Dimensions (per model)Datasheet, L x H x D: 623EM and 624EM 305 x 80 x 50mm; 625EM 340 x 80 x 50mm
Flowline Cover Dimensions (per model)Datasheet, L x H x D: 623EM and 624EM 305 x 80 x 50mm; 625EM 360 x 80 x 50mm

Downloads

Additional information

Weight5 kg
Model

623EM, 624EM, 625EM
