AssistCall Standalone WC Kit in White
£164.38 (inc VAT: £197.26)
Summary

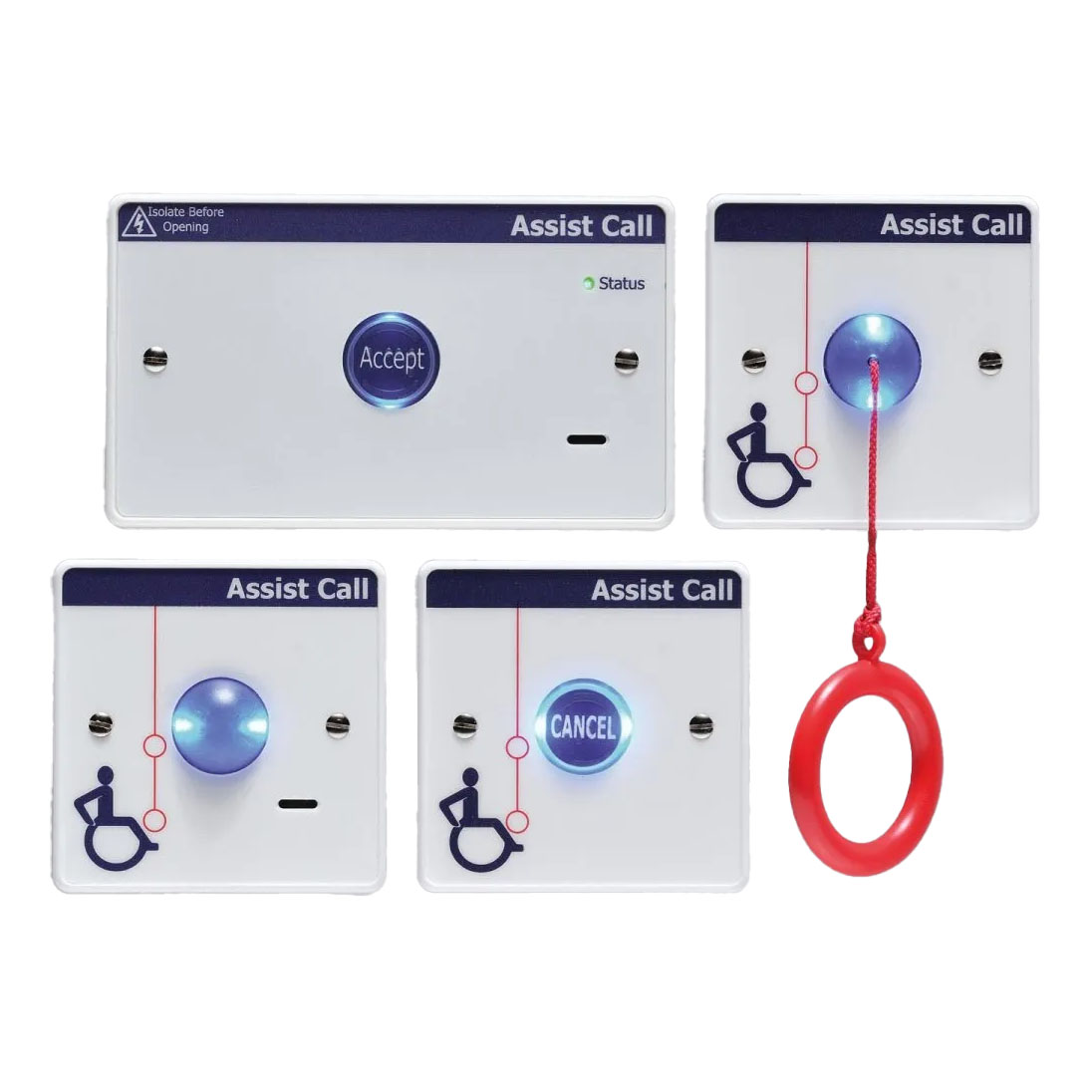

The Vox Ignis AssistCall Remote WC Alarm Kit White version (ViAC-RTK-W) provides a complete standalone emergency assistance alarm system specifically designed for accessible toilet facilities. This comprehensive kit includes all components required for a single emergency assistance alarm system, consisting of a ViAC-1ZC-W 1-zone controller, ViAC-CPP-W pull cord, ViAC-CNP-W cancel button and ViAC-ODP-W over-door indicator.
Manufactured from white polycarbonate, the system provides a clean aesthetic suitable for various accommodation environments while maintaining full compliance with accessibility standards. The kit is designed to fit standard MK 25mm depth back boxes – double gang for the controller and single gang for the alarm plates. The system features an integral mains power supply unit, onboard relay output for external signaling, and comprehensive monitoring capabilities. The system meets BS 8300-2:2018 requirements including the essential acknowledge function that provides audible and visual feedback to reassure occupants that help is on the way. The 1-Zone controller should ideally be mounted in a permanently staffed location to alert staff of emergency situations, though it can alternatively be mounted locally to the WC as a power supply unit.
Features
- Complete WC alarm kit with all required components
- Remote 1-Zone control module with integral PSU
- Onboard volt-free relay output for external signaling
- BS 8300-2:2018 acknowledge function with visual and audible feedback
- Monitored alarm input for open and short circuit detection
- White polycarbonate construction for clean aesthetic
- Standard MK back box compatibility (double gang controller, single gang devices)
- Simple installation using Cat5/Cat6, security cable or T&E/flex
- Multiple cable options: 2 core 1mm T&E, 2 core flex, 0.22mm security cable
- Accept button with alarm indication on controller
- DC power/status indicator with lamp test feature
- Adjustable buzzer volume control
- 10kΩ end of line resistor included
- Weekly testing capability with site log recording
- Accessible WC and instruction stickers included
- Lightweight design with 180g total kit weight
FAQ
What components are included in the ViAC-RTK-W kit?
The kit includes: ViAC-1ZC-W 1-zone controller, ViAC-CPP-W ceiling pull cord, ViAC-ODP-W over-door indicator plate, ViAC-CNP-W cancel plate, accessible WC sticker, instruction sticker for inside the WC, installation and operation manual, plus an accessory pack with 8 mounting screws and 1x 10kΩ end of line resistor.
Where should the 1-Zone controller be mounted?
The 1-Zone controller should ideally be mounted in a permanently staffed location to alert staff that the occupant requires assistance. Alternatively, it may be mounted locally to the WC for use as a power supply unit for the system.
How does the alarm acknowledgment process work?
When staff acknowledge the alarm by pressing the Accept button on the controller, the blue indicator changes from flashing to steady and the internal sounder sounds intermittently every 15 seconds. All devices change from flashing to steady indication with intermittent sounder operation to confirm to the occupant that help is on the way.
What cable types and distances are supported?
The system supports: 1mm 2 core flex for lengths up to 500m from the 1-Zone controller, or security cable for shorter lengths – up to 50m for 2 cores, up to 200m if 4 cores are twisted together. Cat5/6 or security cable options include 1x pair 0.22mm up to 50m or 2x pair 0.22mm up to 100m.
What do the LED status indicators mean on the controller?
The status LED indicates: Solid green – mains supply healthy; Flashing yellow – line is open circuit; Solid yellow – line is short circuit. The status indicator is located on the top right hand of the fascia.
What maintenance is required for the system?
Weekly testing is required: operate a pull cord, acknowledge the call using the controller, check all indicators and reset from the cancel plate within the WC. All test results should be recorded in the site log.
What additional functions are available on the controller?
The controller includes adjustable buzzer volume control via a potentiometer on the rear PCB, and a volt-free NO relay contact rated at 1A @30V DC that operates during alarm conditions for signaling ancillary equipment such as sounders or beacons.
Specifications
- Kit Part Number : ViAC-RTK-W
- Integral Power : Mains into controller
- Input Lines : 1
- Input Voltage : 12 VDC Nominal
- Monitoring : Open and Short Circuit
- End Of Line Resistor : 10kΩ
- Alarm Relay Output : 1x Volt free NO, Com 24VDC 3A
- Accept Button : 1x Push Button with alarm indication
- Status Indicators : 1x DC power/status indicator
- Controller Height : 86mm
- Controller Width : 140mm
- Controller Depth : 22mm
- Controller Weight : 150g
- Alarm Plates Height : 86mm
- Alarm Plates Width : 86mm
- Alarm Plates Depth : 12mm
- Total Kit Weight : 180g
- Material : White polycarbonate
- Cable Type LSF Flex/T&E : 2 cores 1mm
- Cable Distance LSF Flex/T&E : 500m
- Cable Type Cat5/6 Single Pair : 1x pair 0.22mm
- Cable Distance Cat5/6 Single Pair : 50m
- Cable Type Cat5/6 Dual Pair : 2x pair 0.22mm
- Cable Distance Cat5/6 Dual Pair : 100m
- EMC Compliance : EN 55035:2017+A11:2020, EN 55032:2015+A1:2020
- LVD Compliance : EN IEC62368-1:2020+A11:2020
- Product Family Standards : BS 8300-2:2018
- Document Reference : DViACRTK0001-01
