C-Tec Accessible Disabled Persons Toilet Alarm Kit
£61.59 (inc VAT: £73.91)
Summary
The C-TEC NC951 Accessible Disabled Persons Toilet Alarm Kit represents the UK’s market-leading solution for emergency assistance alarms in accessible facilities. This comprehensive kit features a combined ceiling and wall mountable pull cord unit, providing flexibility in installation while maintaining full BS8300 compliance for emergency assistance alarm systems.
Designed with simplicity and reliability in mind, the system allows distressed individuals to raise an alarm in emergency situations by pulling the cord of the ceiling/wall pull unit. This action activates both a light and sounder outside the WC and on the system’s Call Controller, ensuring immediate notification to staff or caregivers.
The kit includes advanced call acknowledgment functionality, enabling staff to send an intermittent signal back to the WC to confirm that help is on the way, providing reassurance to the person in distress. With easy installation requirements and the ability to be wired using standard 4 core stranded security cable, the NC951 offers a practical and compliant solution for accessible toilet facilities.
Features
- Market-leading disabled persons toilet alarm system
- Combined ceiling and wall mountable pull cord unit
- Complete BS8300 compliant emergency assistance alarm kit
- Easy installation with simple wiring requirements
- Call Accept function for staff acknowledgment signals
- Activates external light and sounder for immediate alert
- Can be wired in 4 core stranded security cable
- Suitable for single zone assistance alarm applications
- Versatile use in changing rooms, solariums, interview rooms and reception areas
- Includes comprehensive component kit with all necessary items
- 500mA rechargeable standby battery for reliable operation
- 24 hours standby and 15 minutes alarm running time
- Up to 3 ceiling/wall pulls can be daisy-chained together
- Volt free relay contacts for additional integration
- Multiple LED indicators for system status
- IP41 rated construction for durability
FAQ
What does the NC951 kit include?

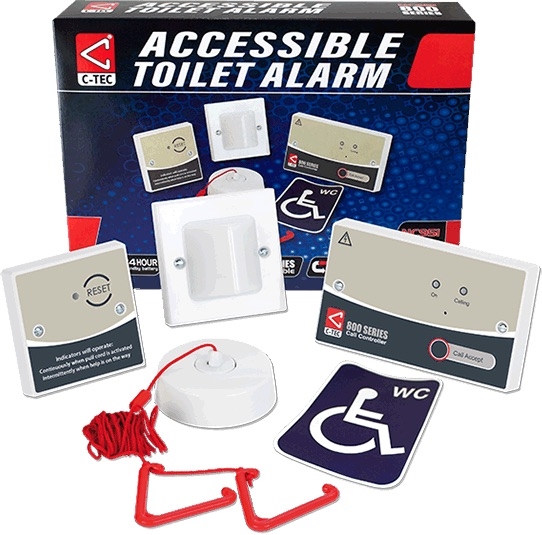

The kit includes an NC943B 12V 140mA Call Controller with standby battery and relay, NC807C Ceiling/Wall Pull, NC806CS Overdoor Light with Sounder, NC809DBBT Accessible Toilet Reset Point with Sounder, and NC949 Accessible WC Sticker.
Is this system BS8300 compliant?
Yes, the NC951 includes everything required for a BS8300 compliant emergency assistance alarm system, meeting all necessary standards for accessible toilet facilities.
How long will the battery last during a power outage?
The system includes a 500mA rechargeable standby battery that provides up to 24 hours of standby operation and 15 minutes of alarm running time during power outages.
Can multiple pull cords be connected to one system?
Yes, for applications requiring more than one point of call (such as at the WC and wash basin), up to 3 ceiling/wall pulls can be daisy-chained together.
What type of cable is required for installation?
The system can be wired using standard 4 core stranded security cable, making installation straightforward and cost-effective.
Can this system be used in other locations besides toilets?
Yes, the NC951 can be used as a single zone assistance alarm in changing rooms, solariums, interview rooms, reception areas, and other similar applications.
What happens when someone activates the alarm?
When the pull cord is activated, it triggers a light and sounder outside the WC and alerts the Call Controller. Staff can then use the Call Accept function to send an acknowledgment signal back to confirm help is on the way.
Specifications
- Mains Supply : 230V 50/60Hz (23mA max current), 50Hz frequency
- Internal Power Supply : 12V d.c.
- Total Output Current : Limited to 140mA
- Quiescent Current : See individual device listings for NC943B, NC807C, NC806CS and NC809DBBT
- Max Battery Size And Type : NC943B includes onboard 500mA rechargeable standby battery
- Battery Life : Up to 24 hours standby and 15 minutes alarm running time
- Alarm Current : 40mA (all NC951 devices, includes 18mA Zone current)
- Auxiliary Relays : NC943B has one set of volt free relay contacts (NO/C/NC), rated at 30V d.c. @ 1A
- Indicators : NC807C & NC809DBBT have red Reassurance LEDs; NC806CS has twin red Alarm LEDs; NC943B has red Alarm and green Supply Present LED
- Controls : NC943B has link-selectable Call Accept/Reset button; NC807C has pull cord with two bangles; NC809DBBT has Reset button
- Expansion Connections : Up to 3 ceiling/wall pulls can be daisy-chained together
- Call Acknowledgement Functionality : Yes
- Onboard Sounder : Yes (on NC809DBBT, NC806CS and NC943B)
- Onboard Infrared Receiver : No
- Product Dimensions : 147 W x 87 H x 93 D mm (NC943B); 87 W x 87 H x 68 D mm (NC806CS); 87 W x 87 H x 24 D mm (NC809DBBT); Ceiling/wall pull 93mm diameter x 27 D mm
- Packaging Dimensions : 285 W x 201 H x 55 D mm (NC951 kit box containing all items)
- Construction And Finish : Plastic
- IP Rating : IP41 (except ceiling/wall pull which is IP21)
- Weight : 0.60kg
- Operating Conditions Temperature : -5°C to +40°C
- Maximum Relative Humidity : 95% non-condensing
