C-Tec EP203 Hold/Abort Button
£48.13 (inc VAT: £57.76)
Summary
The EP215 Hold/Abort Button is a versatile device designed for use with the EP203 automatic extinguisher panel. It provides a straightforward means of delaying or cancelling the extinguishant release sequence, enhancing control over fire suppression systems. This button can be surface or flush mounted, making it adaptable to various installation requirements.

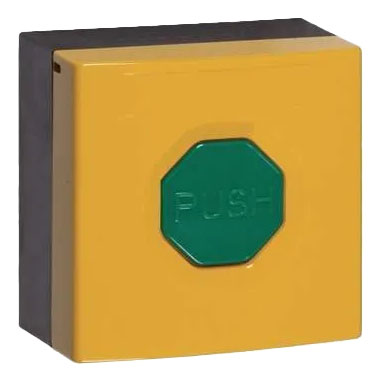

The unit includes a 35mm black back box, a yellow lid, and a green push button, and it comes with two branding label options: ‘Extinguishant Hold Off’ and ‘Extinguishant Abort’. Depending on the wiring configuration, the button can be used for either holding or aborting the release sequence. For systems requiring both functions, at least two EP215 buttons will be necessary.
Features
- Connects to EP203 panel for hold or abort functions
- Includes two branding label options
- Surface or flush mounting capability
- IP24 rated for indoor use
Specifications
- Quiescent Current : 0mA (none)
- Alarm Current : n/a
- Controls : Green button
- Product Dimensions (mm) : 87 H x 87 W x 58 D mm
- Construction & Finish : Polycarbonate. Green push button, yellow call point housing, black back box
- IP Rating : IP24
- Weight : TBC
- Operating Conditions/Temperature : -0ºC to +65ºC. Max. relative humidity 95% non-condensing
Downloads
- Datasheet (Adobe PDF)
