C-Tec EP203 Output Expansion Relay Board
£70.35 (inc VAT: £84.42)
Summary

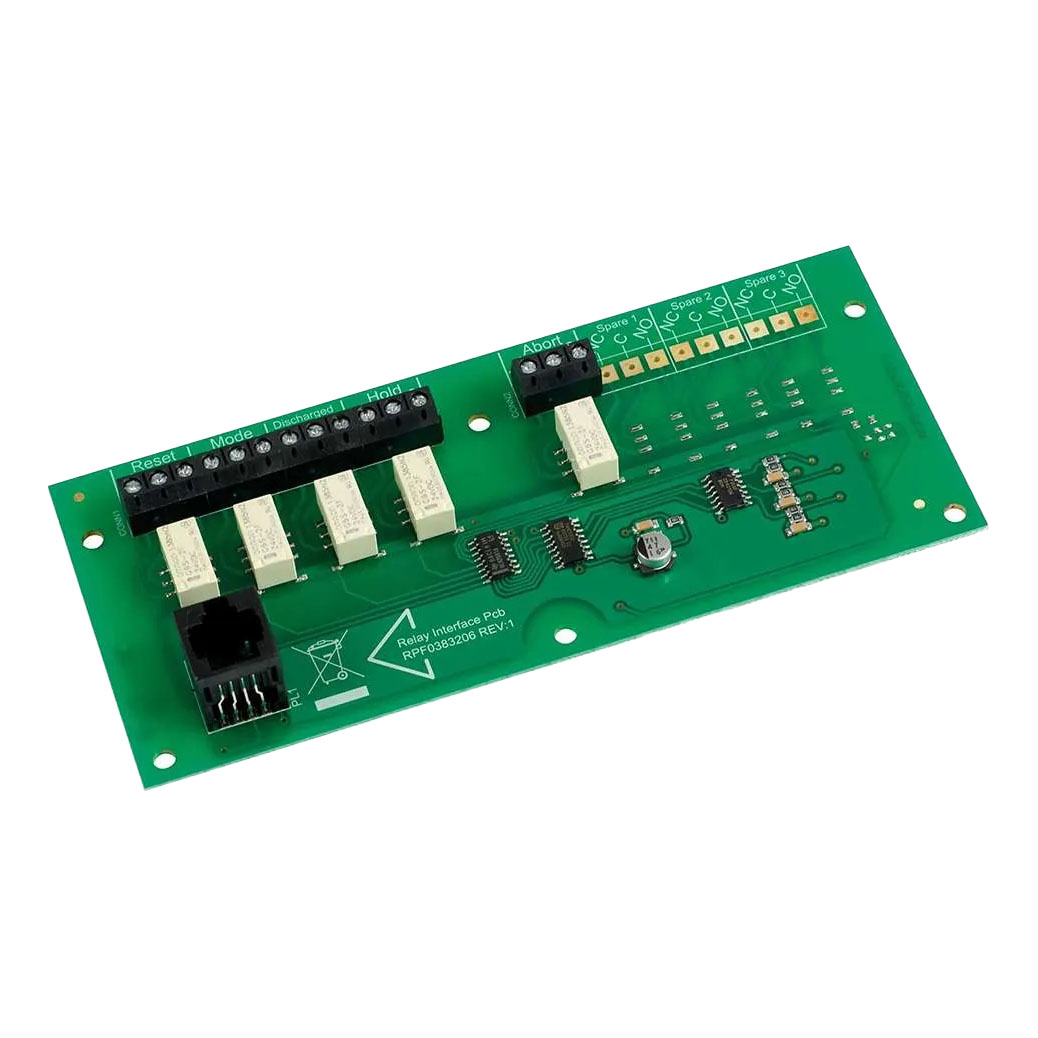

The EP212 Output Expansion Relay Board is an optional system expansion device designed for use with the EP203 three zone automatic extinguisher panel. This board enhances the functionality of the EP203 by providing additional relay contacts that can be used for various control and monitoring purposes within the extinguishing system.
Specifically, the EP212 mounts inside the EP203 panel and offers five volt free relay contacts for reset, mode, discharged, hold, and abort functions. These relays allow for greater flexibility and control over the extinguishing process, ensuring that the system can be tailored to meet specific operational requirements.
Features
- Provides five volt free relay contacts
- Reset relay switches during the panel’s reset cycle
- Mode relay switches when system mode changes to manual
- Discharged relay activates upon extinguishant release
- Hold relay halts release sequence during 2nd stage alarm
- Abort relay cancels the extinguishant release sequence
Specifications
- Product Dimensions (mm) : 70 W x 160 H x 22 D mm
- Weight : 62g
- Properties : Single pole changeover contacts; Rated at 1A 30V DC
- Note : DO NOT use to switch mains voltages
Downloads
- Datasheet (Adobe PDF)
