C-Tec EP203 Remote Status Unit
Summary

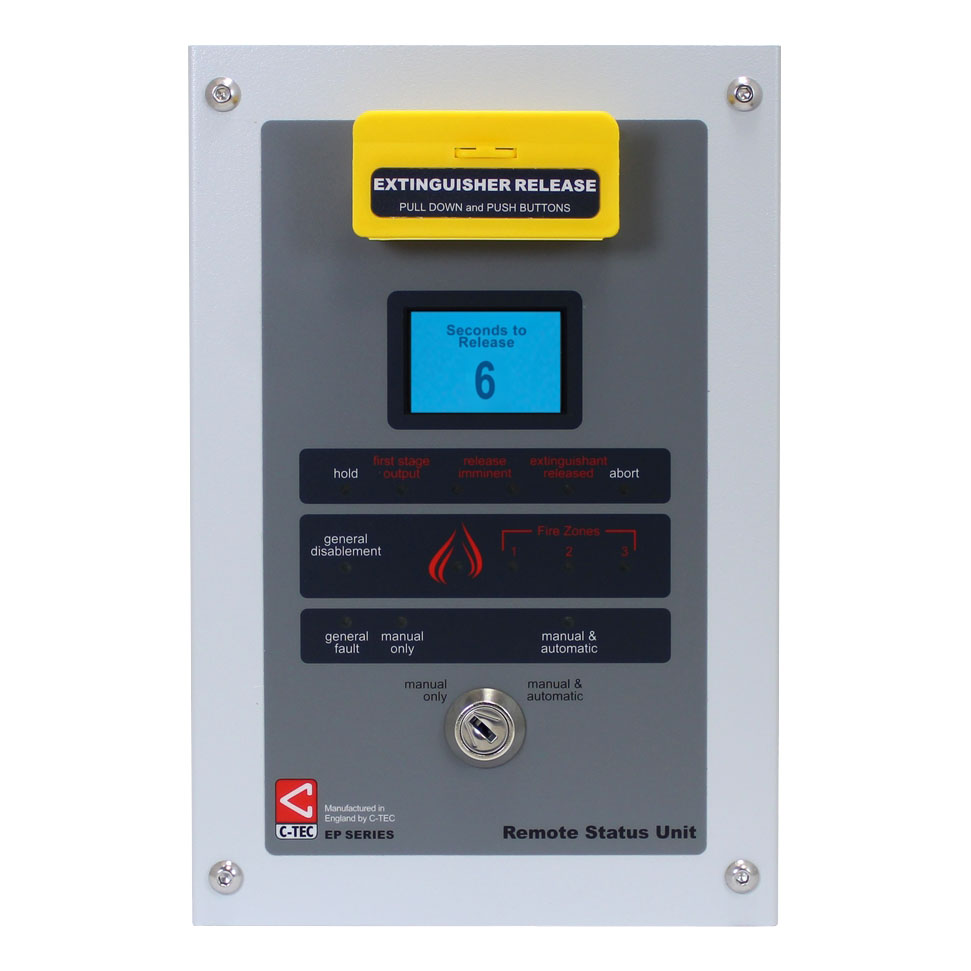

The EP210S Remote Status Unit is a surface-mounted device designed to enhance the functionality of the EP203 Automatic Extinguisher Panel by providing remote system status indication. It connects to the RS485 terminals on the EP203 panel and features a 128 x 64 pixel LCD status display, offering clear and comprehensive feedback on the system’s status.
This unit includes a pull-down manual release button, a mode keyswitch for selecting between automatic and manual operation, and a wide range of system status indicators. It supports up to eight remote status units per EP203 panel, allowing for flexible and scalable system configurations. Additionally, flush-mounted units and weatherproof enclosures are available to suit various installation environments.
Features
- Connects to EP203 panel via RS485 for remote status indication
- Includes manual release button and mode keyswitch
- Three monitored input connections: Hold, Abort, and Mode
- Supports up to 8 remote status units per EP203 panel
- Available in flush and weatherproof versions
Specifications
- Power Requirements : Quiescent current 7mA
- Auxiliary Inputs : 21-28VDC (200mA electronic fuse)
- Indicators : Gen. fire; Fire Zones (x3); Gen. disablement; Hold; 1st Stage Output; 2nd Stage Output; Release Imminent (x2); Exting. Released; Abort; Gen. Fault; Man. Only; Man/Auto
- Controls : Extinguishant release (housed in yellow casing); Operation keyswitch (Manual only or Manual & Auto)
- Product Dimensions (mm) : 160 W x 240 H x 51 D mm
- Construction & Finish : Metal
- IP Rating : IP30
- Weight : 1.498kg
- Operating Conditions/Temperature : -5ºC to +40ºC. Max relative humidity: 95%
- Network Specification : RS485; Max. 8 remote status units (any mix) per EP203; Four wire connection (2 power, 2 data); Daisy-chain wiring
Downloads
- Surafce Datasheet (Adobe PDF)
- Flush Datasheet (Adobe PDF)
Additional information
| Device Type | |
|---|---|
| Mounting | Flush, Surface |
