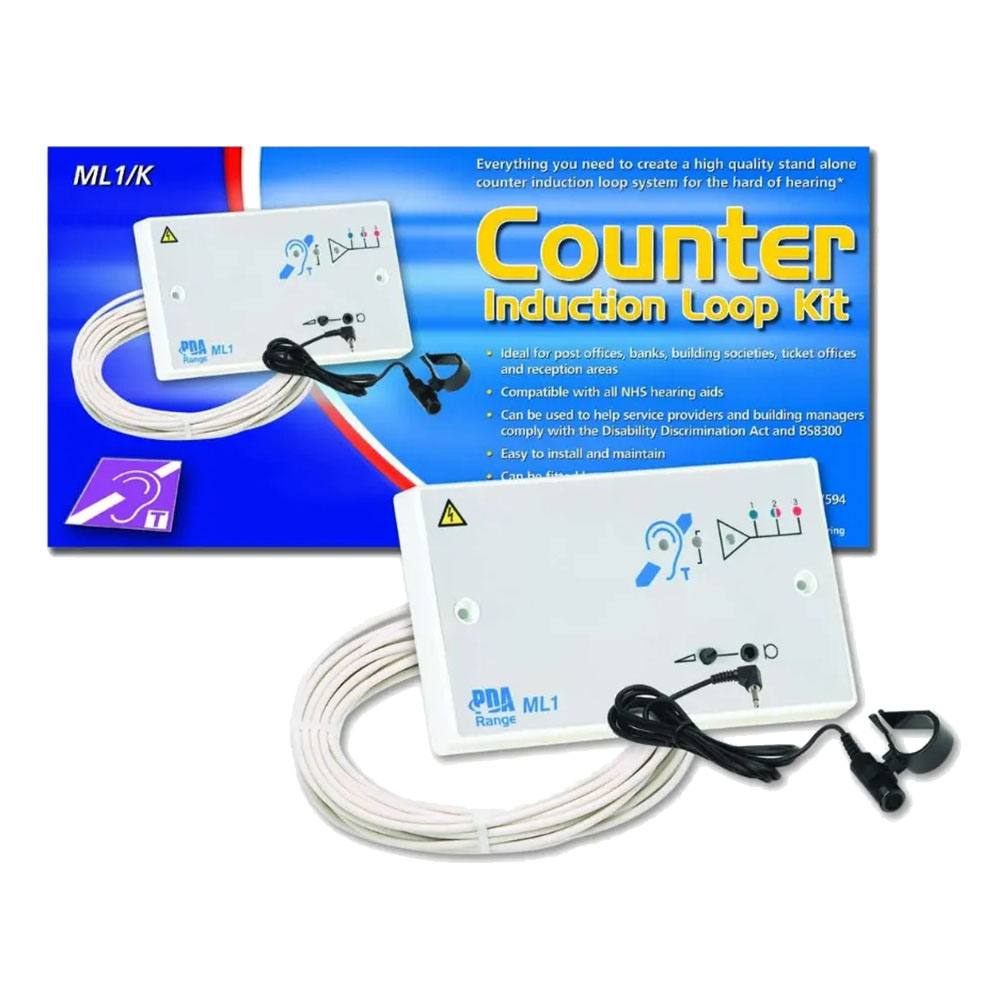

C-Tec ML1/K Counter Induction Loop Kit
£114.29 (inc VAT: £137.15)
Summary
The C-Tec ML1/K is a 1.2m² double gang fixed counter induction loop system, perfect for environments such as banks, post offices, small meeting rooms, reception desks, and ticket booths where restricted or small area coverage is required. This system is designed for easy installation by any competent electrician, requiring no specialist audio experience or connectors.
The space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes and requires fixed mains wiring. It includes an omni-directional AMT microphone that plugs directly into the 3.5mm socket on the amplifier’s front. Additionally, a line/outreach socket is provided, supporting up to three outreach plates per system. The ML1/K features user-adjustable microphone sensitivity and engineer-adjustable loop drive and input level controls.
Features
- Designed for small area coverage
- Easy installation by competent electricians
- Space-saving double-gang wall-mounting amplifier
- Omni-directional AMT microphone included
- Line/outreach socket for additional plates
- User-adjustable mic sensitivity
- Engineer-adjustable loop drive and input levels
Specifications
- Type : Wall-mounting (requires fixed mains wiring and a 25mm back box)
- Coverage : 1.2m² approx.
- Mains Supply : Requires fixed wiring using 3 core cables of not less than 1mm² fed from an isolating switched fused spur, fused at 3A
- Max Battery Size And Type : n/a
- Auxiliary Inputs : 1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
- Indicators : Input level; power on; loop drive meter
- Controls : Mic. input level, line input level; loop drive
- Product Dimensions (mm) : W 143 x H 83 x D 32mm
- Construction & Finish : Plastic
- IP Rating : IP20
- Weight : 300g (amplifier only)
Downloads
- Datasheet (Adobe PDF)
