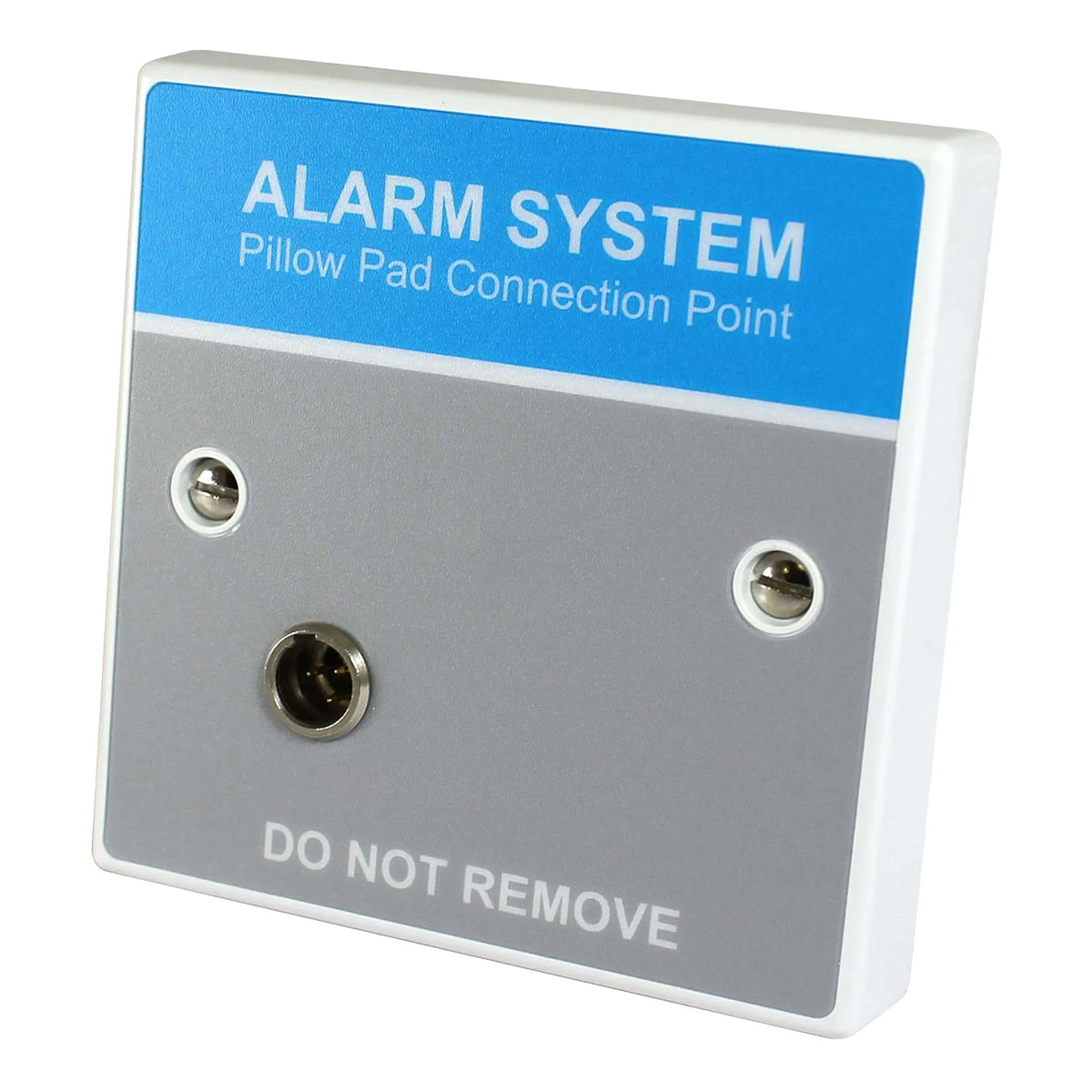

C-Tec Single Gang Locking Jack Socket for BF320
£15.33 (inc VAT: £18.40)
Summary
The C-Tec BF320JP is a single gang locking jack socket designed for use with the BF320 vibrating pillow pad. It serves as an essential accessory to alert the hearing impaired of potential fire alarms or evacuation alerts. Compatible with all C-TEC fire alarm and evacuation alert systems, the BF320JP ensures reliable connectivity and monitoring.
Featuring a locking mini-XLR connector and plug arrangement, this device helps prevent accidental removal of the pillow pad. It offers selectable end of line monitoring options, making it versatile for use in various fire alarm or evacuation alert systems. The BF320JP is designed to fit on a standard UK 25mm back box, providing ease of installation.
Features
- Compatible with C-TEC fire alarm and evacuation alert systems
- Prevents accidental pillow pad removal
- Selectable end of line monitoring options
- Operates within 10-30V DC voltage range
- Supersedes the old BF364 jack socket
Specifications
- Part Number : BF320JP
- Supply/Operating Voltage : 10-30V DC
- Alarm Current : 65mA at 24V, 110mA at 10V (when pressure pad connected)
- Connections : +24V and 0V
- Product Dimensions : 86mm W x 86mm H x 15mm D
- Construction & Finish : PVC White RAL90003, Grey/blue label
- Weight : 56g
- Operating Conditions/Temperature : -10°C to +60°C
Downloads
- Datasheet (Adobe PDF)
