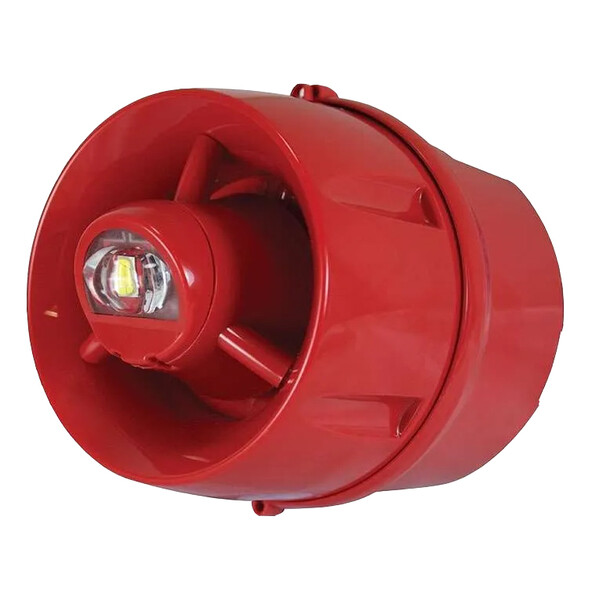

CAST Weatherproof Wall Sounder & White VAD
£51.03 (inc VAT: £61.24)
Summary
The C-TEC CA433A/DR/65 is a weatherproof high-output Visual Alarm Device (VAD) designed for reliable performance in outdoor environments. With its robust construction and impressive sound output, this device ensures effective fire alarm signaling while meeting stringent safety standards. Certified to EN54, the CA433A/DR/65 is an ideal solution for modern fire safety applications, providing both visual and audible alerts.
Utilising the advanced CAST protocol, this VAD allows for seamless integration with multiple devices, enhancing the overall efficiency and responsiveness of fire alarm systems.
Features
- Group addressing facility for simultaneous operation of multiple devices
- Four selectable volume levels and 31 selectable tones
- Onboard short-circuit loop isolator
- 13.5mA typical alarm current
- Light distribution rated W-2.75-9 and W-4-4 VAD certified
- Operating temperature range of -10ºC to +55ºC
Specifications
- Approvals/certifications : LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13
- Protocol/compatibility : Compatible with C-TEC’s CAST protocol Addressable Fire Panels
- Application/operation : Designed to be wall mounted. IP55 rated and suitable for use outdoors
- VAD category & coverage : W-2.75-9 rated light distribution. Also certified as a W-4-4 rated VAD
- Flash rate & colour: 0.5Hz / White.
- Supply/operating voltage: 27 to 40V DC.
- Quiescent current : 460µA
- Nominal SPL (Sound Pressure Level) : 103dB(A) when set to tone 1
- Alarm current : 13.5mA @ 27-40V (VAD lit, Sounder on max)
- Indicators : Polling (red LED)
- Product dimensions (mm) : 122mm diameter x 46mm deep (not including optional CAST detector and base)
- IP Rating : IP55 (Type B)
- Weight : 315g
- Operating conditions/temperature: -10ºC to +55ºC. Max. 95% RH (Non-condensing)
Downloads
- Datasheet (Adobe PDF)
