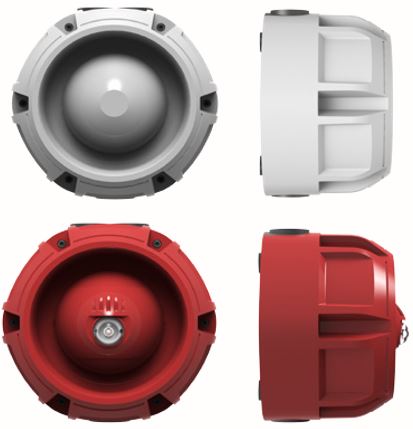

Conventional Raptor Sounder Beacon White Flasher
Key features
- Complies with EN54 Pt 3 Type B & EN54 Pt 23.
- 107dB +/- 3dB @ 1m sound output.
- 22 Tone patterns (site selectable).
- Suitable for surface mounting only.
- Housed in UL V0 flame retardant ABS.
- 3 x 20mm cable entries (2 top, 1 bottom).
- First fix, wire to back box technology.
- IP65 Rating.
- Flashing rate 0.5Hz
Downloads
Summary
The Raptor conventional sounder with beacon has a coverage pattern of W 2.9 – 8.5 and the sounder part has 22 selective tones.
View full overview Show less
It has been designed to make an “electronics free” first fix and is available in red or white.
Key Features
- Complies with EN54 Pt 3 Type B & EN54 Pt 23.
- 107dB +/- 3dB @ 1m sound output.
- 22 Tone patterns (site selectable).
- Suitable for surface mounting only.
- Housed in UL V0 flame retardant ABS.
- 3 x 20mm cable entries (2 top, 1 bottom).
- First fix, wire to back box technology.
- Flashing rate 0.5Hz
Specifications
- Voltage : 17 – 28V DC
- Quiescent Current : 1.5mA
- Alarm Current : 5.5mA
- Flash Colour : White or White
- Flash Frequency : 0.5Hz
- Body Colour : Red or White
- Sounder Type : B
- IP Rating : IP 65
- Operating Temperature : -10ºC to 55ºC
- Sound Output @ 1m : 107dB +/- 3dB
- Size mm : 150 x 146 x 98
- Weight : 540g
