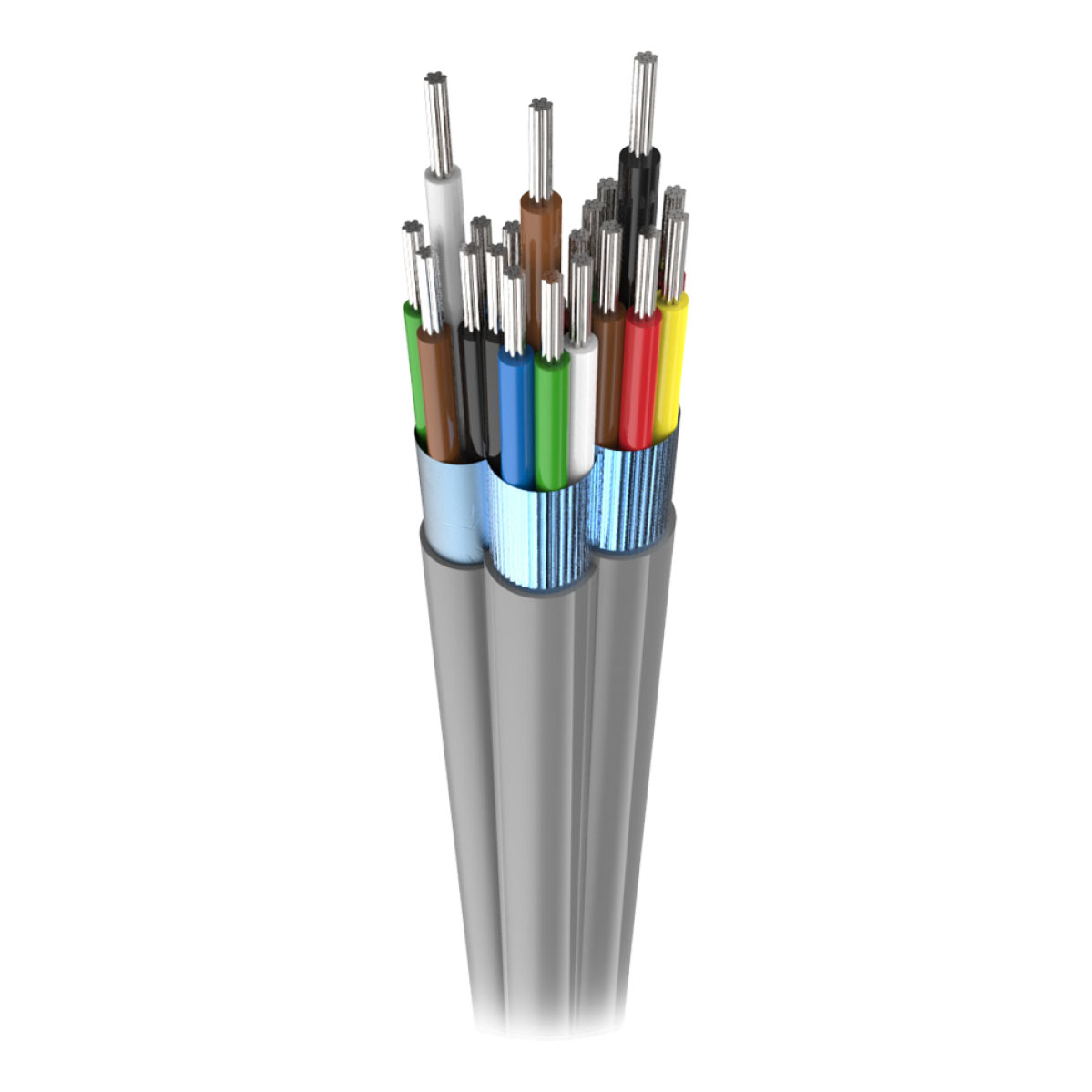

CQR Belden Style 9536 Screened Cable, 100m
Summary
The CQR Belden Style 9536 Screened Cable is a high-quality copper cable designed to meet the stringent requirements of the European Construction Product Regulation (CPR) EN50575. This cable has undergone independent testing and certification by an accredited test facility, earning a CPR Euro classification. It is the preferred choice for installers, specifiers, and end-users seeking a reliable cabling solution that ensures performance in the event of a fire. CQR provides peace of mind with DoP certificates available for download online.
With over 30 years of experience in alarm cable manufacturing in the United Kingdom, CQR Security Ltd offers a product that is typically used for security applications. The cable is available in various core configurations and lengths, with additional options available upon request. For more details, visit the CQR website.
Features
- Typically used for security
- 7 x 0.194mm tinned copper conductors
- Sheathed in low smoke and fume material
- Screened with alu/polyester foil
- Manufactured to BS4737-3.30:2015 Type 2
- Fully compliant with EN50575 ‘CPR’
Specifications
- Core : 7 x 0.194mm
- Resistance : 83.3 Ohms/Km
- AWG : 24
- Conductor Material : Tinned Copper
- Conductor Area : 0.207mm2
- Max Voltage : 50 volts
- Sheathing : LSF
- Core Insulation : PVC
- Operating Temp : 70°C
- Euroclass Rating : Eca
- Drain Wire : Soft tinned copper
- Screen : Alu/Polyester Foil
