Cranford Controls DRP Pole Mounted Door Retainer Unit
Key features
- 500N and 1000N versions available as DC only
- Manual release button

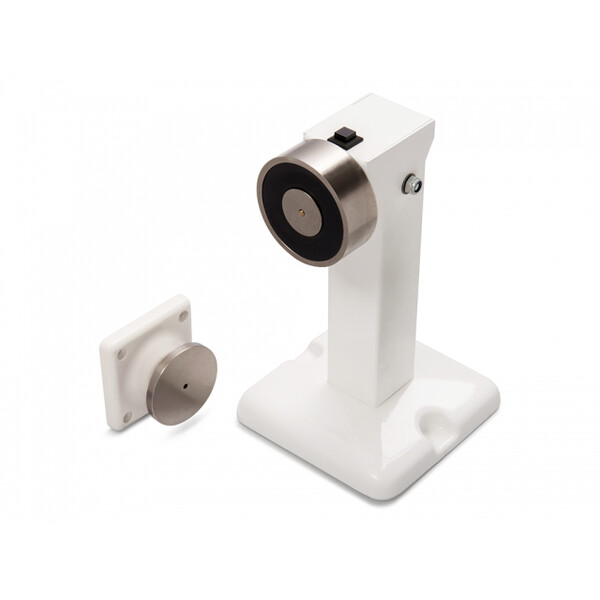

- Provided complete with keeper plate
Downloads
Summary
The DRP door retainers are available in both 500N and 1000N versions and also come in two standard lengths which can also be cut to length if required.
View full overview Show less
The magnet is fixed within an adjustable head which allows the door retainer to transform between floor, wall or ceiling mounted. The stand and adjustable head are fabricated from steel providing a very robust structure.
A moulded cover is included to conceal the mounting fixings once installed.
Fatures
- 500N and 1000N versions available as DC only
- Manual release button
- Provided complete with keeper plate
- Rapid and easy installation
- Additional accessory products available
Specifications
- Models :
- 302-029 : DRP-S500
- 302-027 : DRP-L500
- 302-030 : DRP-S1000
- 302-028 : DRP-L1000
- Supply Voltage : 24Vdc
- Current Consumption :
- 302-029 : 47
- 302-027 : 47
- 302-030 : 76
- 302-028 : 76
- Rated Holding Force :
- 302-029 : 500
- 302-027 : 500
- 302-030 : 1,000
- 302-028 : 1,000
- Maximum Holding Force :
- 302-029 : 750
- 302-027 : 750
- 302-030 : 1,300
- 302-028 : 1,300
- Protection : IP51
- Material : Fabricated Steel
- Boxed Weight (kg) :
- 302-029 : 1.50
- 302-027 : 1.60
- 302-030 : 1.90
- 302-028 : 2.00
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Pole Length | 200mm, 300mm |
| Holding Force | 1,000N, 500N |
| Device Type | |
| System Type | |
| Mounting | Floor, Wall |
