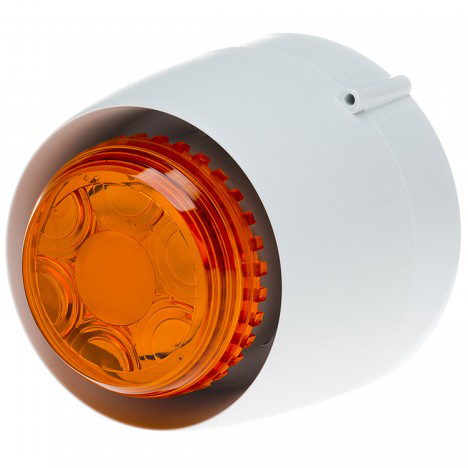

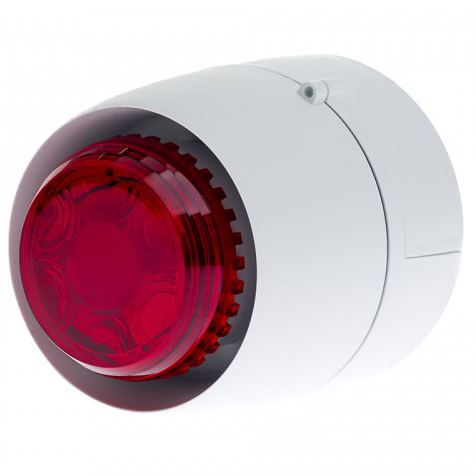

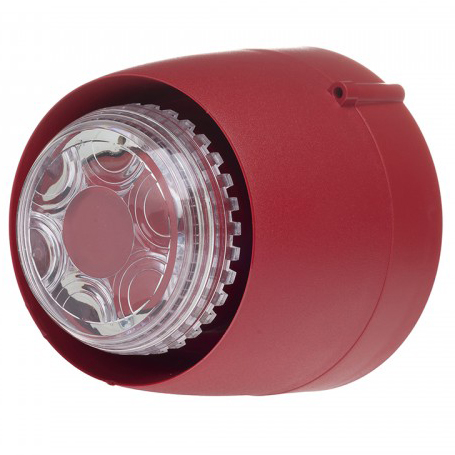

Cranford Controls VTB Spatial Sounder & Beacon
£27.64
Key features
- 32 tones plus a selectable override tone.
- Shallow base IP43 and deep base IP65 versions available.
- Switch selectable beacon only feature.
- Unique twist and lock bayonet mounting system.
Downloads
Summary
The VTB 24Vdc sounder beacon is part of the VTG family of products designed for use with conventional fire alarm systems including two wire (SAV-WIRE®) and other general 24Vdc applications.
View full overview Show less
The sounder function, like all VTG products, comes as standard with 32 tones. The beacon function has been designed for maximum all-round visibility, coupled with low power consumption utilising an array of energy efficient LEDs. The sounder function features a two-stage alarm override which is activated by a third negative wire from the fire panel.
Both the sounder and beacon functions are fully synchronised. The product can also be used as a beacon only which is easily selected by a DIL switch at the time of installation.
Key Features
- 32 tones plus a selectable override tone.
- Shallow base IP43 and deep base IP65 versions available.
- Switch selectable beacon only feature.
- Unique twist and lock bayonet mounting system.
- Removable cover on deep base for surface wiring.
- Features base locking system as standard.
Specifications
- Voltage Range (Vdc) : 18-35
- Number Of Tones : 32
- Operating Frequency (Hz) : 440 – 2900
- Temperature Range (°C) : -20 to +70
- Fash Rate : c. 1Hz
- Monitoring : Reverse polarity
- Protection Rating : IP43 (shallow) IP65 (deep)
- Boxed Weight (kg) : 0.223 (shallow) 0.258 (deep)
- Body Colours Avaliable : Red or white (ABS fire retardant plastic)
- Lens Colours Available : Red, amber, clear or blue
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.35 kg |
|---|---|
| Body-colour | |
| Colour | |
| Lens Colour | |
| Device Type | |
| Base | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Maximum Sound Level | |
| System Type |
