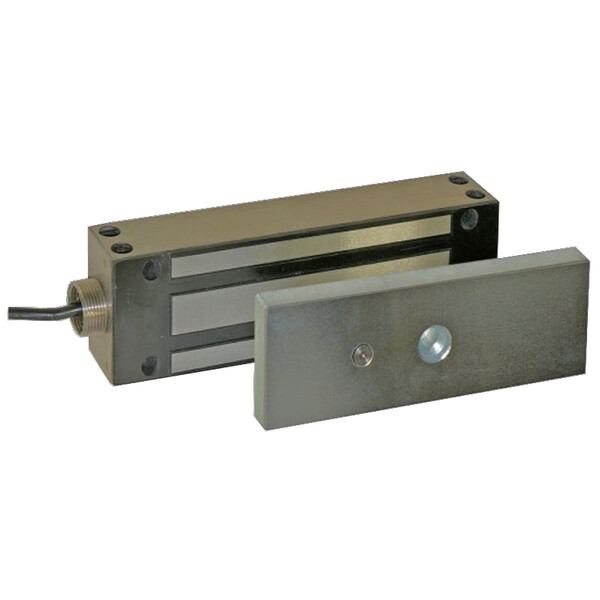

Deedlock External Monitored Electro-Magnet Lock For Single Gate
£90.74 (inc VAT: £108.89)
You may also need
Key features
- External magnet for single gate
- 1,100lbs (4890N) minimum holding force
- Surface mounted and easy to install
Downloads
Summary
The Deedlock external electro-magnetic locks are suitable for outside installations or areas where the magnet may be affected by moisture, such as vehicle and pedestrian single gates.
View full overview Show less
The magnet bodies have mounting holes which allow for side or face fixing to the door frame.
Features
- Surface mounted and easy to install.
- Stainless steel housing.
- Both side and face fixing options available.
- Reed switch monitoring.
- 12 or 24V DC Operating voltage.
- Z Bracket available to fix armature to inward opening gate.
- The cable entry point on the gate lock has an M20 threaded collar to allow for water-tight fixing with suitable conduit.
- CE Marked.
- Current draw 500mA at 12V / 250mA at 24V.
Specifications
- Minimum Holding Force : 1100lbs (4890N)
- Operating Voltage : 12 or 24V DC
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Device Type |
