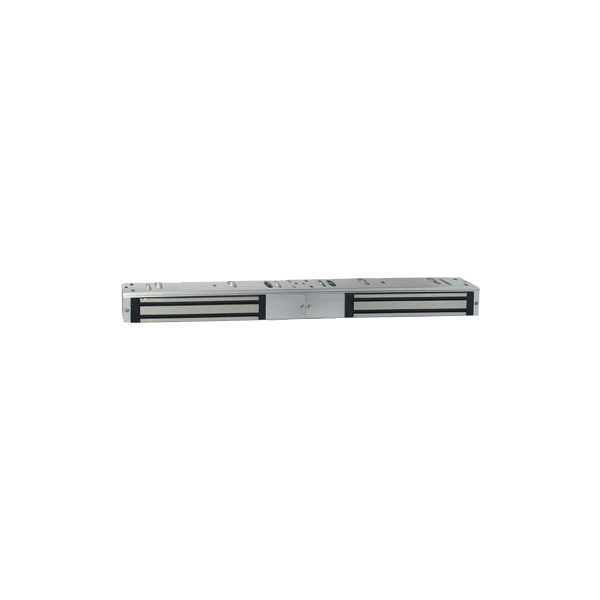

Deedlock Slimline Double Fire Rated Door Magnet
£81.90
You may also need
Key features
- Suitable for double doors, inward or outward opening
- Fire rated to EN1634-1 for 30min and 60min timber doors (when used with SINAEM2 intumescent sleeve)
- Option monitoring
Downloads
Summary
The Deedlock slimline range of mini Electro-magnetic locks have been fully tested to TS010:2016 and meet the requirements of grade 2 holding force. The comprehensive system of low profile magnets are suitable for secondary security or low to medium security on internal doors.
View full overview Show less
The range includes single and double Electro- magnetic locks with door status monitoring and is available with a time delay, which can be set via adjustments on the PCB from 0-90 seconds.
A number of accessories are available, including; Z & L brackets for inward opening doors, L bracket for outward opening doors, brackets for glass fixing and flush and surface mounting armature plate holders.
Features
- Suitable for double doors, inward or outward opening.
- Fire rated to EN1634-1 for 30min and 60min timber doors (when used with SINAEM2 intumescent sleeve).
- Option monitoring.
- Low maintenance with no moving parts.
- Safety bolts prevent the magnet from detaching from the bracket itself.
- Kick off pin in the armature plate to overcome any residual magnetism when power to the magnet is turned off.
- For medium usage traffic applications.
- Z & L Brackets available.
- Certified to TS010 – Grade 2 – Minimum Holding Force 2000 N (450 lbf) (204 kgf).
- CE Marked.
Specifications
- Finish : Satin Anodised Aluminium finish
- Voltage : 12 / 24V DC (Selectable on site)
- Tested Holding Force : 2090 N (470 lbf) (213 kgf)
- Magnetic Lock Size : H47 x W500 x D26mm
- Armature Plate Size : H38 x W185 x D12mm
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 3 kg |
|---|---|
| Monitored | No, Yes |
| Device Type |
