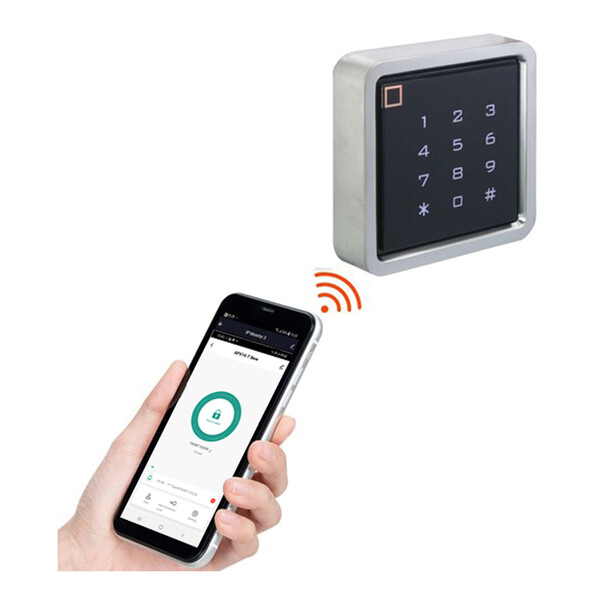

Deedlock Standalone Waterproof Bluetooth & WiFi Keypad
£54.86 (inc VAT: £65.83)
Summary
The APX-14 and APX-14T are professional waterproof standalone keypads designed for secure access control in both internal and external environments. Featuring a sleek satin chrome housing and touch keypad design, these units provide reliable access control for up to 2000 users with 4-digit PIN codes and proximity fob support.
The standard APX-14 model offers robust standalone functionality with IP68 waterproof protection, making it ideal for harsh outdoor conditions. The enhanced APX-14T variant includes built-in Bluetooth and Wi-Fi connectivity, enabling remote management through the free Tuya mobile application. This connectivity allows for remote door release, audit trail viewing, user management, and the ability to issue temporary access codes remotely.
Both models feature a backlit keypad for visibility in low-light conditions and offer adjustable lock relay timing from 1-99 seconds. With Wiegand output capability, these keypads can be integrated into networked access control systems, providing flexibility for both standalone and networked installations.
Features
- 4-digit PIN code and proximity fob support
- Up to 2000 user capacity
- Touch keypad with satin chrome finish
- IP68 waterproof rating
- Backlit keypad for low-light visibility
- Adjustable lock relay timing 1-99 seconds
- Wiegand output for networked systems
- 3A maximum lock output
- 12V DC power input
- Compact 85 x 85 x 20mm dimensions
- Bluetooth and Wi-Fi connectivity (APX-14T)
- Remote door release capability (APX-14T)
- Remote audit trail viewing (APX-14T)
- Remote user management (APX-14T)
- Temporary access code issuing (APX-14T)
- Free Tuya mobile app compatibility (APX-14T)
FAQ
What is the difference between APX-14 and APX-14T models?
The APX-14 is a standalone keypad with IP68 rating, whilst the APX-14T includes additional Bluetooth and Wi-Fi connectivity with remote management capabilities through the Tuya mobile app.
Can these keypads be used outdoors?
Yes, both models feature IP68 waterproof rating, making them suitable for external installation in wet conditions and harsh environments.
How many users can be programmed into the keypad?
Both models support up to 2000 users with 4-digit PIN codes and proximity fob access.
What type of locks can be controlled?
The keypads provide a 3A maximum lock output suitable for controlling electric locks, magnetic locks, and electric strikes.
Can the keypad be integrated into existing access control systems?
Yes, both models feature Wiegand output allowing integration into networked access control systems.
What power supply is required?
Both keypads operate on 12V DC power supply.
Specifications
- User Capacity: Up to 2000 users
- PIN Code Length: 4 digits
- Access Methods: PIN code and proximity fob
- IP Rating: IP68
- Power Supply: 12V DC
- Lock Output: 3A maximum
- Lock Relay Time: Adjustable 1-99 seconds
- Dimensions: 85 x 85 x 20mm
- Keypad Type: Touch keypad with backlight
- Finish: Satin chrome
- Communication Output: Wiegand
- Connectivity (APX-14T): Bluetooth and Wi-Fi
- Mobile App (APX-14T): Free Tuya app
- Remote Features (APX-14T): Door release, audit trail, user management, temporary codes
Downloads
- Datasheet (Adobe PDF)
