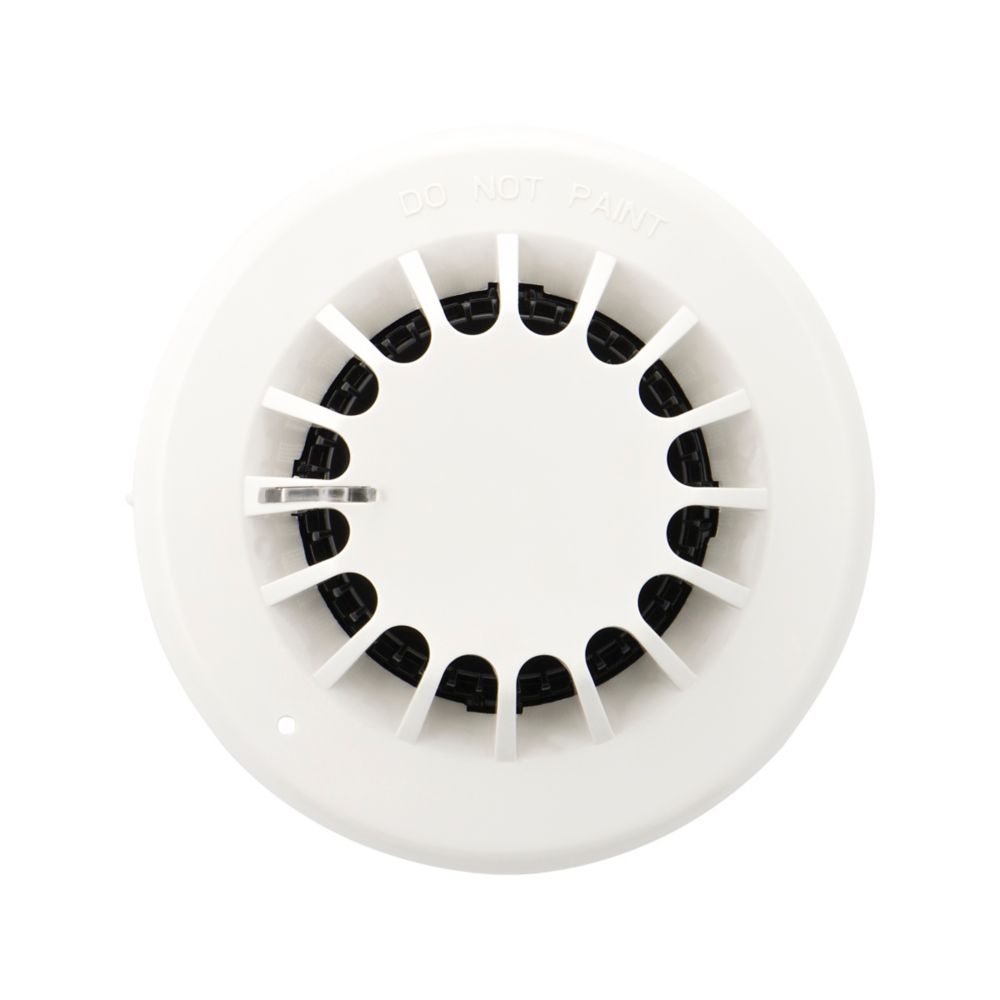

Eaton Conventional Enhanced Optical Smoke Detector
£13.55 (inc VAT: £16.26)
Summary
The Eaton EFXN533 is a professional-grade conventional optical smoke detector designed for reliable fire detection in commercial and residential applications. This EN54-7 certified device provides dependable smoke detection using advanced optical sensing technology, making it an ideal choice for fire safety systems requiring conventional detection methods.
Constructed from durable white ABS plastic with a compact 100mm diameter profile, the EFXN533 integrates seamlessly into any ceiling-mounted fire detection system. The detector features rear cable entry and surface mounting capabilities, ensuring straightforward installation whilst maintaining aesthetic appeal in various environments.
Features
- Optical smoke detection technology for reliable fire detection
- EN54-7 certified to European fire detection standards
- Conventional non-addressable system compatibility
- White ABS plastic construction for durability
- IP40 environmental protection rating
- Compact 100mm diameter design
- Surface mounting installation method
- Rear cable entry configuration
- DC voltage operation
- Suitable for duct mounting applications
- Networkable via cable connectivity
- CE certification compliance
FAQ
What type of fire detection system is the EFXN533 compatible with?
The EFXN533 is designed for conventional (non-addressable) fire detection systems, making it suitable for traditional fire alarm installations where individual device identification is not required.
Where can the EFXN533 be installed?
The detector is designed for ceiling mounting in open areas and is also suitable for duct mounting applications. It features an IP40 protection rating for indoor use.
What certifications does this smoke detector hold?
The EFXN533 is EN54-7 certified, meeting European standards for smoke detectors, and carries CE certification for compliance with European safety requirements.
How is the detector powered?
The unit operates on DC voltage and is designed to work with battery/accumulator backup systems typical of conventional fire alarm panels.
Can multiple detectors be networked together?
Yes, the EFXN533 features networkable functionality via cable, allowing integration into larger conventional fire detection systems.
Specifications
- Product Name: Eaton Conventional detector
- Catalog Number: EFXN533
- EAN: 5018987361286
- Product Dimensions: 100mm x 100mm x 44mm
- Product Weight: 0.076 kg
- Operating Principle: Optic
- System Typology: Conventional (Non-addressable)
- Construction Material: ABS
- Colour: White
- Degree Of Protection: IP40
- Mounting Position: Ceiling in open areas
- Mounting Method: Surface mounting
- Cable Entry: Rear
- Voltage Type: DC
- Current Supply Primary: Battery/accumulator
- EN Certification Standards: EN54 Pt7 (Smoke Detector)
- Certifications: CE
- Suitable For: Duct Mounting
- Integrated Function: Networkable Via Cable
