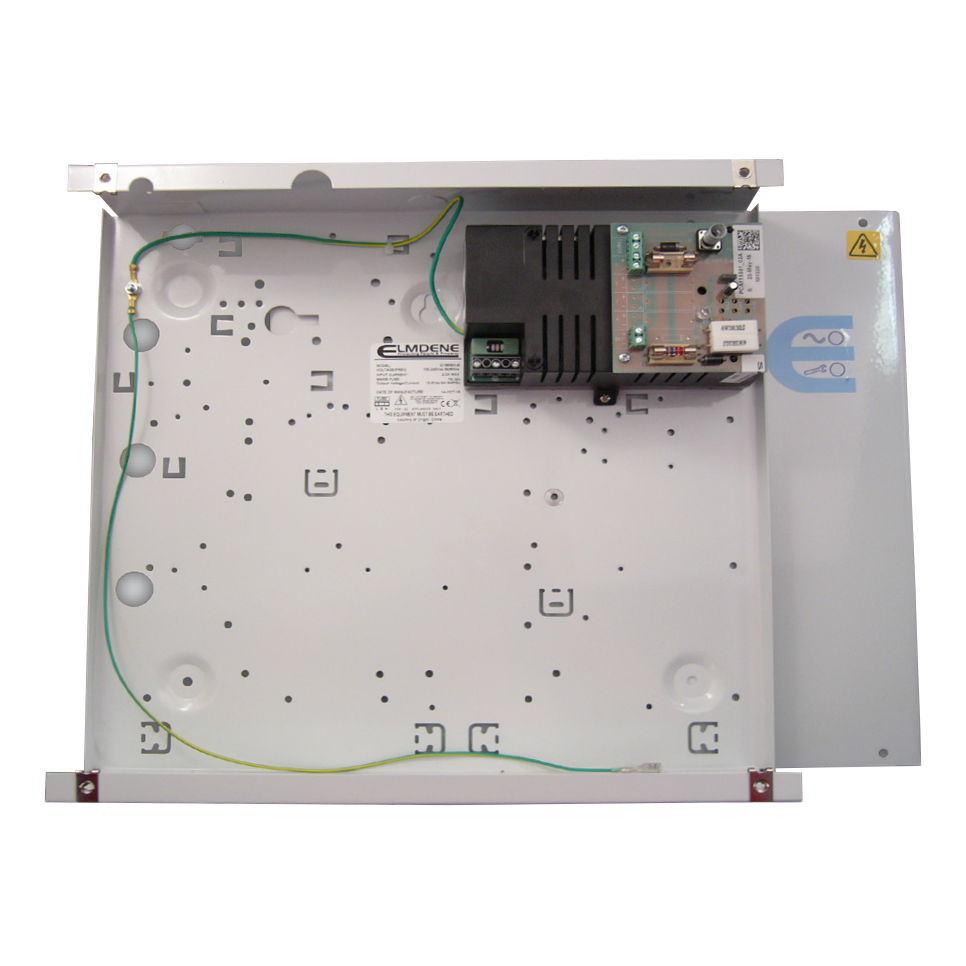

Elmdene 12V 1A Switch Mode Power Supply
£22.61 (inc VAT: £27.13)
Key features
- 13.8V dc output
- Cost effective switch mode technology
- Energy efficient
Downloads
Summary
The 12V dc G Range, N Series power supply is suitable for access control, intruder systems, and general-purpose applications that require the use of a standby battery. These products use energy-efficient switch mode technology and have a universal mains supply input (90—264V ac). Elmdene’s FOM4 or FOM8 units can be fitted to give 4 or 8 independent fused outputs if required.
View full overview Show less
The modular range consists of 1A, 2A, 3A, 4A, and 5A power variants with full rated current to load and also features a fully regulated output with low ripple and noise. Unboxed (module only) versions are also available if required.
Features
- 13.8V dc output
- Cost effective switch mode technology
- Energy efficient
- Front Tamper Protection
- Modular construction for easy maintenance and upgrading
- Full rated current to load +0.5A battery charging
- Electronic overload protection
- Mains transient protection
- LED indication for mains status and fault
- Lifetime warranty
Specifications
- Output : 13.8V dc
- Mains Input : 90V – 264V ac at 50 – 60Hz
- Max Battery : 1 x 12V 7AH
- Operating Temperature : -10°C to 40°C at 95% RH
- Dimensions (HxWxD) : 200x230x80mm
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|
