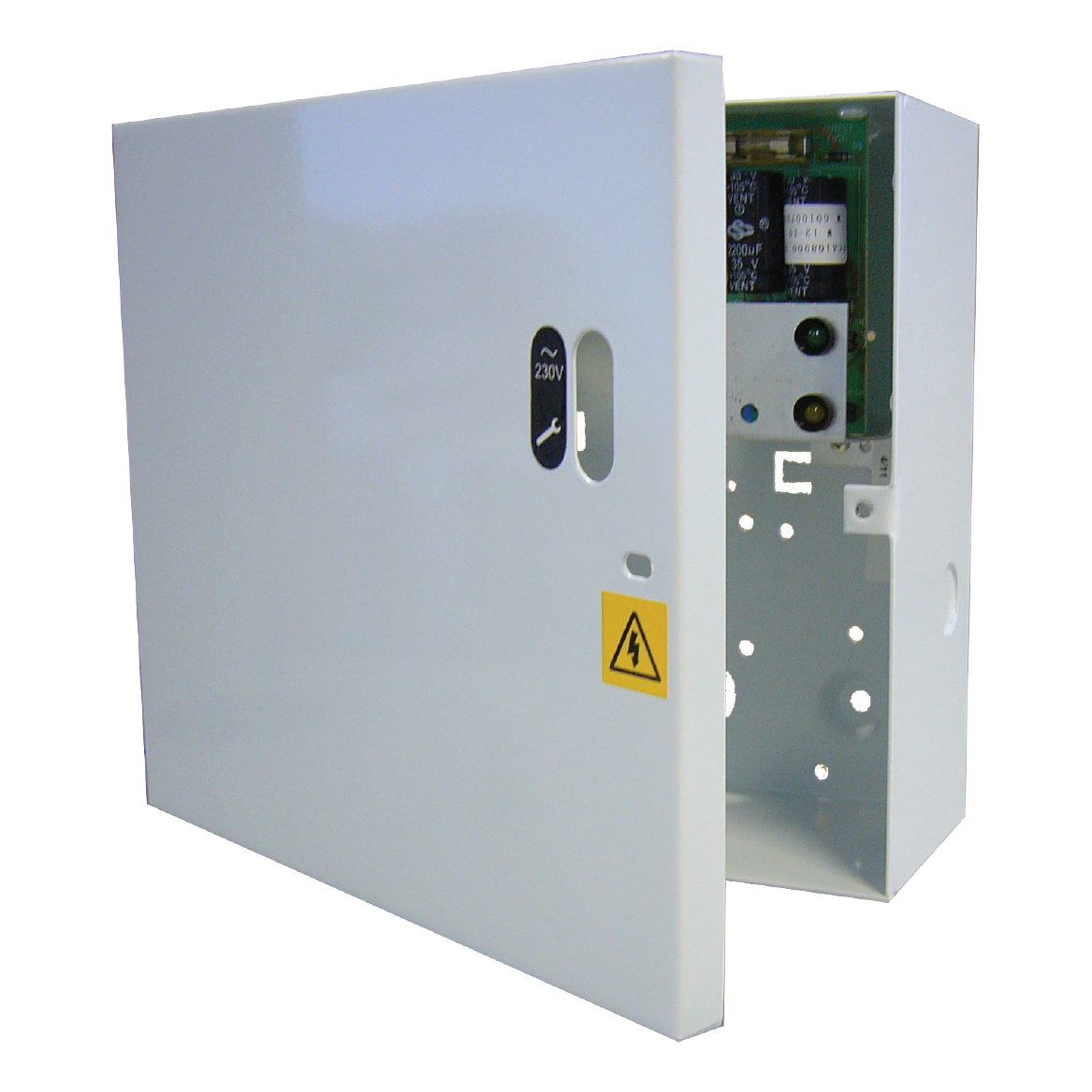

Elmdene TR 24V Transformer Rectifier
Key features
- 24V transformer rectifier with choice of 2 or 4A output
- Ideal for magnetic door retainers
Downloads
Summary
The enhanced Elmdene TR range of power supplies has been specifically designed for access control applications that require remote control of the power supply output. A typical example being where a TR power supply unit is used to power magnetic door retainers; utilising a signal from the fire panel in order to switch off the output to the doors in the event of a fire alarm activation.
View full overview Show less
The units now have an expanded range of input options which includes the detection of a normally closed contact going open and also removal of a 24V dc signal to provide a fully fail safe operation mode (BS 7273 Compliant).
The three control input options for remote control of the output are as follows:
- Removal of an external 24V dc supply (BS 7273 Compliant)
- Opening of a normally closed volt-free contact
- Closing of a normally open volt-free contact
LED status indicators provide quick diagnostics showing the presence of a mains input and output fuse failure.
Features
- 24V transformer rectifier with choice of 2 or 4A output
- Ideal for magnetic door retainers
- Remote control of output
- Choice of control options
- LED indication
- Mains transient protection
- Fail safe operation
- 3 year warranty
Specifications
- Output : 22 — 30V dc nominal
- Load Output : 2.0A, 4.0 A*
- Mains Supply : 230V at 50Hz
- Environment : -10°C to 40°C
- Dimensions (HxWxD) : 200x230x80mm
- Weight :
- TR2 : 3kg
- TR4 : 3.5kg
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Output | 2A, 4A |
