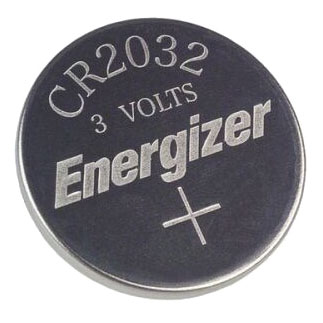

Energizer CR2032 Battery
£1.28 (inc VAT: £1.54)
Summary
The Energizer CR2032 is a lithium coin battery designed for reliable and long-lasting power. It is commonly used in small electronics such as watches, calculators, and medical devices. With its compact size and high energy density, the CR2032 offers a stable voltage output and a wide operating temperature range, making it suitable for various applications.
Features
- Lithium / manganese dioxide chemical system
- Nominal voltage of 3.0 volts
- Typical capacity of 235 mAh
- Typical weight of 3.0 grams
- Low self-discharge rate of ~1% per year
- Operating temperature range from -30°C to 60°C
Specifications
- Classification : Lithium Coin
- Chemical System : Lithium / Manganese Dioxide (Li/MnO2)
- Designation : ANSI / NEDA-5004LC, IEC-CR2032
- Nominal Voltage : 3.0 Volts
- Typical Capacity : 235 mAh (to 2.0 volts)
- Typical Weight : 3.0 grams (0.10 oz.)
- Typical Volume : 1.0 cubic centimeters (0.06 cubic inch)
- Max Rev Charge : 1 microampere
- Energy Density : 198 milliwatt hr/g, 653 milliwatt hr/cc
- Typical Li Content : 0.109 grams (0.0038 oz.)
- Operating Temp : -30°C to 60°C
- Self Discharge : ~1% / year
Downloads
- Datasheet (Adobe PDF)
