EVAC-ALERT Non-Self Testing 100dB Evacuation Alert Sounder & VAD
Summary

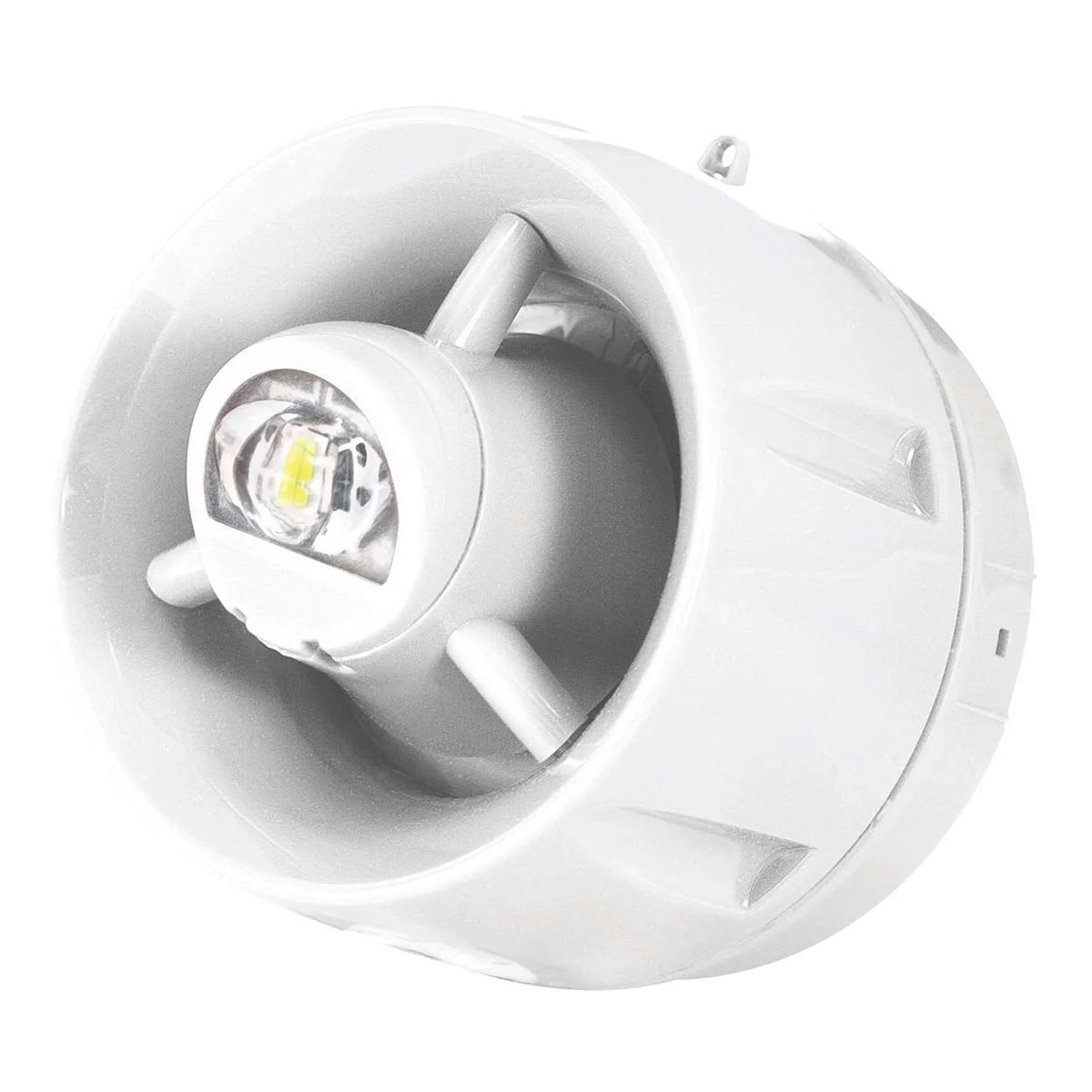

The C-Tec BF433C/CC/SW is a non-self testing evacuation alert sounder and visual alarm device designed for use on a C-TEC CAST-powered EVAC-ALERT system. It provides both audible and visual indications of an evacuation alert, helping to satisfy the requirements of the Equality Act. With an impressive 100dBA sound output at 1 metre, this device ensures clear and effective alerts in emergency situations.
Constructed from durable white ABS plastic, the BF433C/CC/SW is IP21C rated and designed to comply with EN54-3 and 23 standards. Its reliable hard-wired technology makes it a dependable choice for evacuation alert systems, and it features a low alarm current of 12.2mA at 0.5Hz with the sounder on maximum and the indicator lit.
Features
- Designed for C-TEC CAST-powered EVAC-ALERT system
- Audible and visual evacuation alert indication
- Complies with EN54-3 and 23
- Reliable hard-wired technology
- White ABS plastic construction
Specifications
- Part Number : BF433C/CC/SW
- Sound Output : 100dBA at 1m
- Alarm Current : 12.2mA (0.5Hz) or 19.5mA (1Hz)
- Product Dimensions : 108mm diameter x 99mm deep
- Construction & Finish : White ABS plastic
- IP Rating : IP21C
Downloads
- White Datasheet (Adobe PDF)
- Red Datasheet (Adobe PDF)
