EVAC-ALERT Self Testing 100dB Evacuation Alert Sounder & VAD
You may also need
Key features
- 100dB sound output
- Audible and visual alerts
- Low 12.2mA alarm current
Downloads
Summary

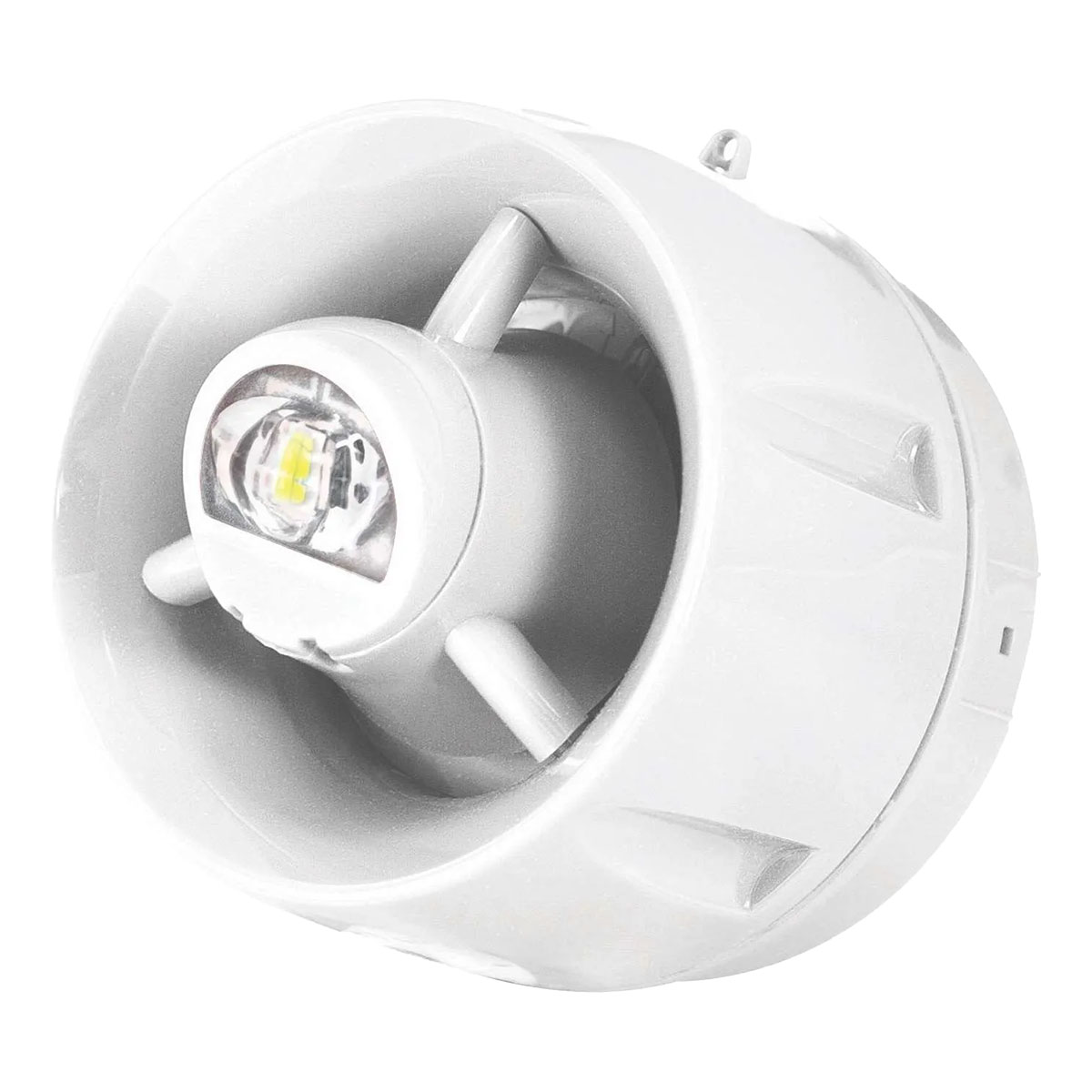

The C-TEC BF433C/EA/SW is a self-testing evacuation alert sounder and visual alarm device, specifically designed for use on a C-TEC CAST-powered EVAC-ALERT system. This device provides both audible and visual indications of an evacuation alert, helping to meet the requirements of the Equality Act by ensuring all individuals are effectively alerted during an emergency.
View full overview Show less
With an impressive 100dB(A) sound output at 1 metre and a low alarm current of 12.2mA at 0.5Hz, the BF433C/EA/SW is both powerful and efficient. It is designed to comply with EN54-3 and 23 standards, ensuring reliability and performance in critical situations. The device is housed in a robust white ABS plastic enclosure and is IP21C rated for indoor use.
Features
- Designed for C-TEC CAST-powered EVAC-ALERT systems
- Provides audible and visual evacuation alerts
- 100dB(A) sound output at 1m
- Low 12.2mA alarm current at 0.5Hz
- IP21C rated for indoor use
- Complies with EN54-3 and 23 standards

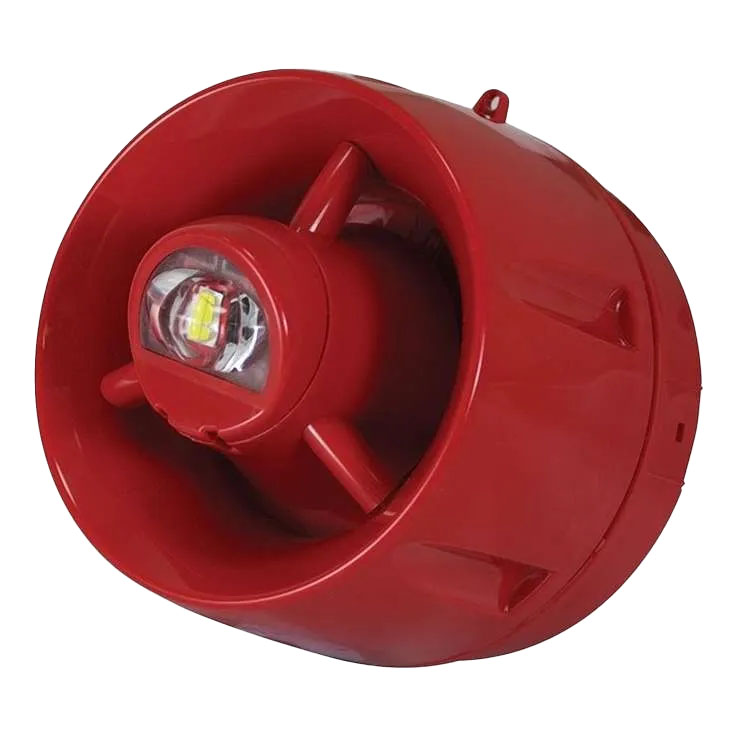

- Available in red (BF433C/EA/SR)
Specifications
- Compatibility : Designed for use with C-TEC’s CAST-powered EVAC-ALERT evacuation alert system
- Alarm Current : 12.2mA (0.5Hz) or 19.5mA (1Hz)
- Onboard Sounder : Yes
- Product Dimensions : 108mm diameter x 99mm deep
- Construction & Finish : White ABS plastic
- IP Rating : IP21C
Downloads
- White Datasheet (Adobe PDF)
- Red Datasheet (Adobe PDF)
