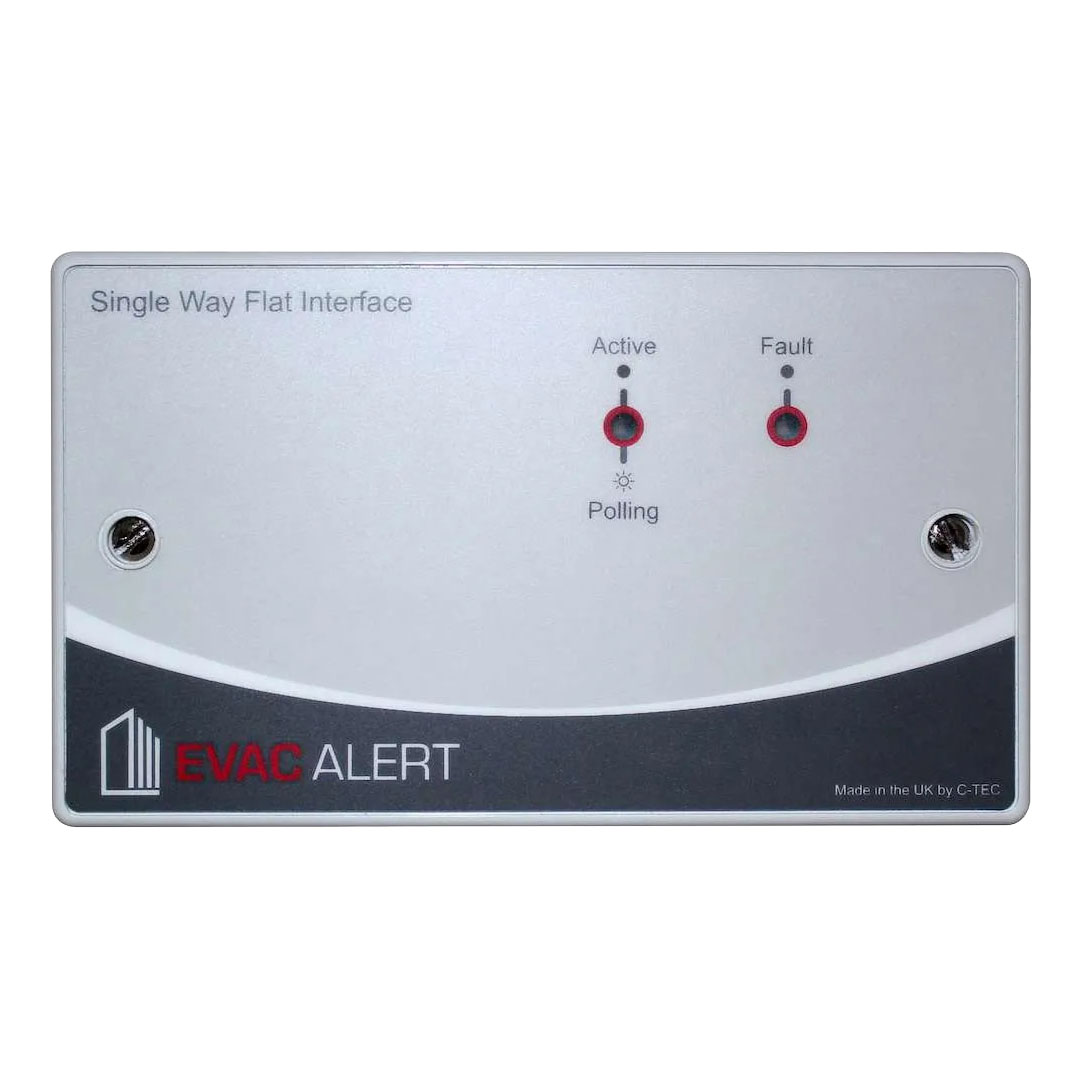

EVAC-ALERT Single-Way Flat Interface
£94.63 (inc VAT: £113.56)
Summary
The CA736 is a loop-powered single-way flat interface designed for use with C-TEC’s EVAC-ALERT system. It is engineered to control one or more evacuation alert devices located inside a flat, ensuring reliable communication and control during emergencies. This interface utilises hard-wired technology, providing a dependable solution for evacuation alert systems.
Compatible with C-TEC’s self-testing evacuation alert devices, the CA736 offers a monitored conventional sounder circuit that detects open and short circuit faults. These faults are indicated on the interface and reported back to the host EVAC-ALERT panel, ensuring prompt attention and resolution. The interface is designed to mount on a standard UK 35mm double gang back box outside the flat, complying with BS 8629 Clause 8.
Features
- Loop-powered single-way interface
- Controls multiple evacuation devices
- Compatible with self-test devices
- Monitored sounder circuit for faults
- Mounts on standard UK back box
- 50mA alarm current capacity
- On-board short circuit loop isolator
Specifications
- Compatibility : Compatible with C-TEC’s CAST powered EVAC-ALERT evacuation alert panels.
- Protocol/Compatibility : CAST / CAST-PRO.
- Supply/Operating Voltage : 18 to 40V DC.
- Quiescent Current : 530µA.
- Alarm Current : 50mA.
- Auxiliary Relays : None.
- Indicators : Active (Lit Red), Polling (Flashing Red), Sounder Fault (Lit Yellow).
- Product Dimensions (mm) : 147 W x 87 H x 22 D.
- Construction & Finish : ABS Polycarbonate plate with a two-tone grey velvet polyester label.
- IP Rating : IP40 when correctly installed.
- Weight : 160g.
- Operating Conditions/Temperature : -10ºC to +55ºC.
Downloads
- Datasheet (Adobe PDF)
