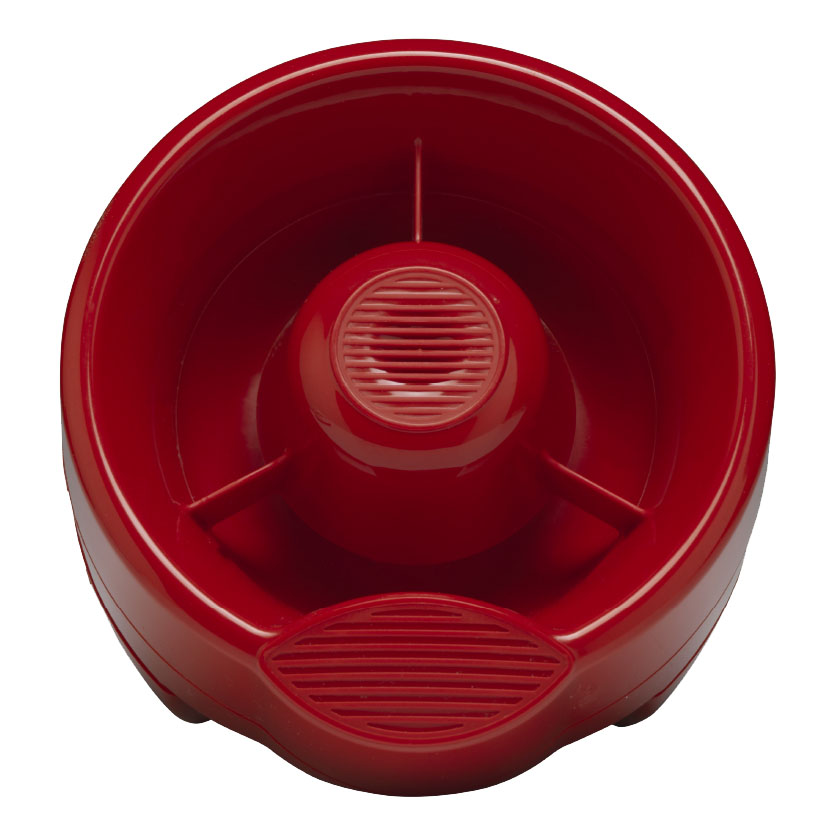

EvacGo Open-Area Conventional Wall Sounder
£37.85
Summary
The EvacGo open-area conventional wall sounder is a versatile and reliable device designed for both standalone and intelligent loop-powered applications. With its ability to reproduce 32 tones and provide a high sound output, it is an ideal solution for a wide range of environments. The sounder offers four adjustable volume settings, ensuring optimal audibility in various conditions.
Designed with a compact and weatherproof build, the EvacGo sounder is easy to install and provides uniform sound distribution across a wide angle. It is available in both red and white colours, catering to different aesthetic and functional requirements. The device is approved for outdoor use and adheres to stringent standards, making it a robust choice for emergency sound signalling needs.
Features
- Flexible modular design
- Approved for outdoor use to EN54-3 (Type B)
- Wide angle uniform sound distribution
- Easy to install
- Available in red or white
Specifications
- Power Supply : 15 to 40 Vdc
- Alarm Current Consumption : 5-8 mA
- Audible Frequency Range : 440 Hz – 2900 Hz
- Maximum Sound Output : 100 dB(A) ±3 dB(A)
- Operating Temperature Range : -25°C to +70°C
- Maximum Humidity : 95% RH
- Depth : 90 mm (base 35 mm)
- Diameter : 132 mm
- Weight : 270 g
- IP Rating : 21
- IP Rating (Not Certified) : 65
Downloads
- Datasheet (Adobe PDF)
