EvacGo Open-Area Conventional Wall Sounder Beacon
£69.83
You may also need
Key features
- 32-tone settings
- High output LED beacon
- Weatherproof to IP65
Downloads
Summary

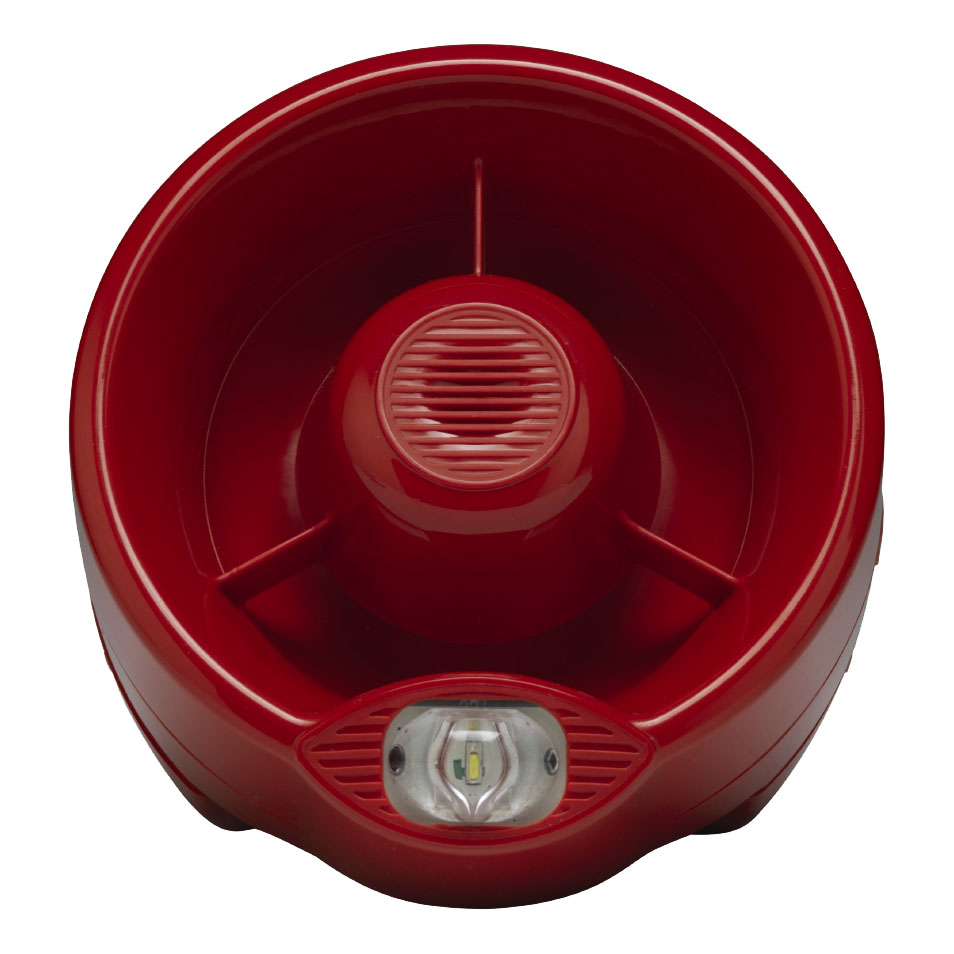

The EvacGo open-area conventional wall sounder beacon is an advanced signalling device designed for both standalone and intelligent loop-powered applications. With the ability to reproduce 32 tones and featuring a high output LED beacon, this device ensures effective audio and visual alerts in emergency situations. It offers four adjustable volume settings and a silent sounder option for beacon-only operation, providing flexibility for various environments.
View full overview Show less
Engineered for reliability and ease of installation, the EvacGo sounder beacon is weatherproof and suitable for outdoor use, conforming to EN54-3 and EN54-23 standards. Its compact design and low current consumption make it an efficient choice for wide-angle sound distribution, ensuring audibility in all directions. Available in both red and white, it is a robust solution for comprehensive emergency alert systems.
Features
- Flexible modular design
- Approved for outdoor use to EN54-3 and EN54-23
- High output LED beacon
- Wide angle uniform sound distribution
- Silent sounder setting for beacon-only use
Specifications
- Power Supply : 15 to 40 Vdc
- Alarm Current Consumption : 12 mA – 26 mA
- Audible Frequency Range : 440 Hz – 2900 Hz
- Maximum Sound Output : 100 dB(A) ± 3 dB(A)
- Visual Alarm Device (VAD) Frequency : 0.5 Hz
- Visual Alarm Device (VAD) Coverage : W 2.5-7 (122.5m³)
- Operating Temperature Range : -25°C – +70°C
- Maximum Humidity : 95% RH
- Depth : 90 mm (base 35 mm)
- Diameter : 132 mm
- Weight : 290 g
- IP Rating : 21
- IP Rating (Not Certified) : 65
Downloads
- Datasheet (Adobe PDF)
