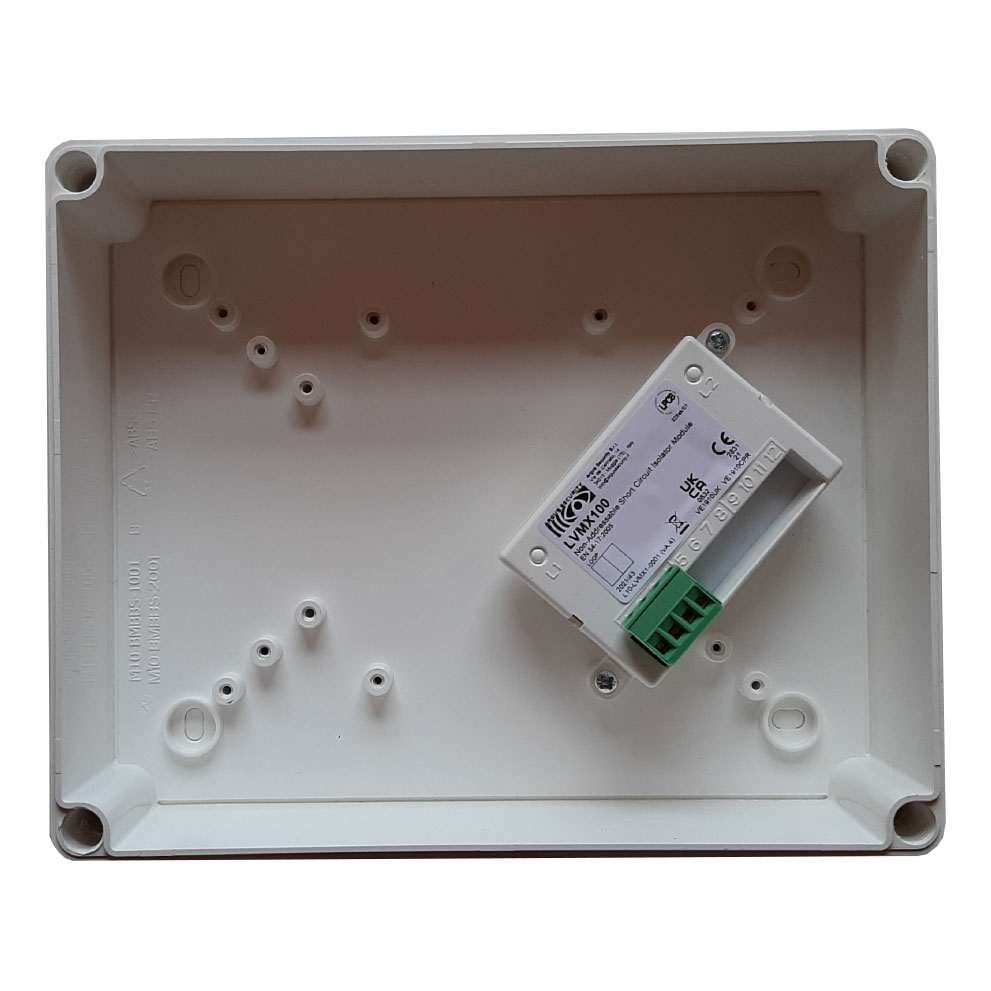

EvacGo Single Boxed Isolator Module
£60.34 (inc VAT: £72.41)
Summary
The 20-LVMX100-BX Single Boxed Isolator Module is engineered to deliver robust protection against short circuits and faults within flats and apartments, specifically in single-floor evacuation zones. This module seamlessly integrates with the EvacGo control panel, facilitating high rates of information exchange and ensuring rapid, secure responses to potential issues.
Designed with compliance to the BS 8629 Code of Practice Standards, this isolator module is a passive device that does not require addressing, making it an efficient and reliable component in emergency systems. Its ability to isolate the affected loop section while maintaining functionality on the opposite section underscores its effectiveness in managing circuit integrity.
Features
- Designed to operate with EvacGo control panels
- Passive device, does not need to be addressed
- Isolates the adjacent loop section where the short circuit occurred
- All functions of devices situated on opposite loop’s section of the module are unaffected
- Restores power to the isolated loop section when short circuit is removed
- Designed to comply with the BS 8629 Code of Practice Standards & Approvals
Specifications
- Loop Voltage Range : 15 – 40 VDC
- Quiescent Current Consumption : 90 μA at 24 VDC
- Operating Temperature Range : -30 to +70°C
- Humidity (non condensing) : 5% to 85% RH
- Dimensions L x H x D (w/o brackets) : 210 x 170 x 66 mm
- Weight : 460g
- Applicable Wire Gauge Range : 0.5 – 2.5mm²
Downloads
- Datasheet (Adobe PDF)
