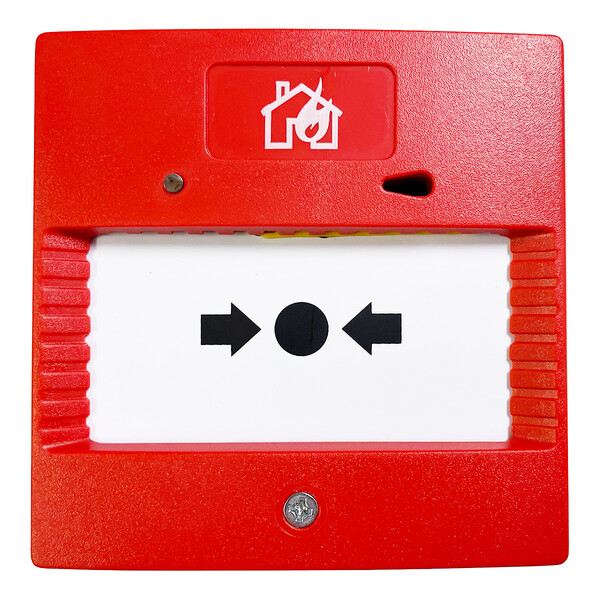

Fike Twinflex Manual Call Point
You may also need
Key features
- Resettable front element
- Indoor and outdoor versions available
- Inbuilt selectable end of line
Summary
The Twinflex Manual Call Point (MCP) allows for user activation of the fire alarm system. Once operated the device latches into the alarm position and requires manually resetting via a special key.
View full overview Show less
This device is compatible with the range of Twinflex Fire Alarm Control Panels and comprises a 2-wire zone-powered Manual Call Point (MCP). This device may be installed on the same zone as the Twinflex Multipoint detector/sounder and other associated Twinflex devices.
An optional clear front cover is available if required (Part No. 25-0083-303).
Specifications
- Dimensions: Width x Height: 88mm x 88mm
Depth: Standard inc Base 52mm
Depth:Flush Mounted 25mm - Operating Temp:10oC to +50oC
- Voltage Range:20 to 35V DC
- LED Indication: Activated: 0.5 Second Interval
End of LIne:5 Second Interval - System Compatibility:Twinflex: V1 Onward
TwinflexPro: V1 Onward - Zone Current @ 24VDC: Quiescent: 50uA
Active: 16mA - SLU / DLU Rating: 3LU / 16DLU
