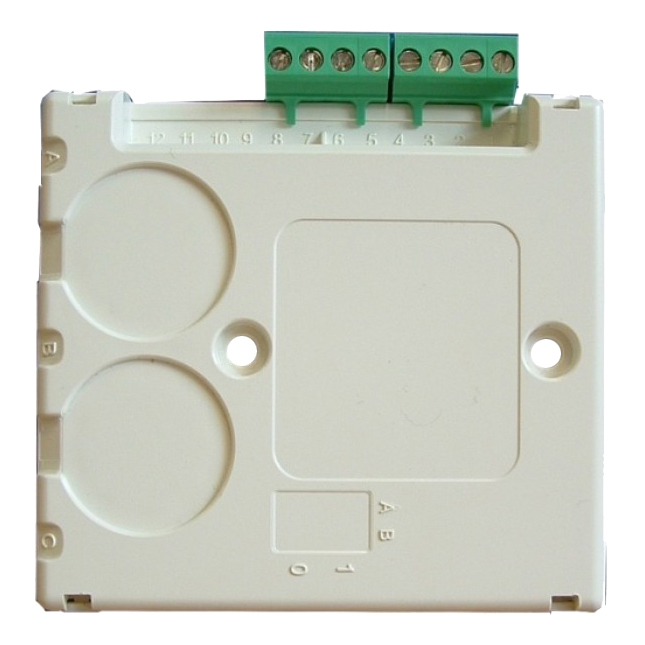

Gent S4 Single Channel Interface, Low Voltage Input Only
£56.98 (inc VAT: £68.38)
Key features
- Gent Interface units are designed to provide heavy duty relay switching for 24V applications with contacts rated at 10A
- Connects directly to the Vigilon system
Downloads
Summary
Interfaces are used to link the fire alarm system to other plant management devices such as sprinklers and security systems. They can also be used to link to a zone of conventional detectors. The Vigilon system can accommodate a high capacity of single channel interfaces on the loop operating both inputs and outputs.
View full overview Show less
The loop powered four channel interface range has individually sectored outputs with channel 1 set as a loop powered zone module. All interfaces are seen by the panel as one address although each input/output can have a separate label displayed at the panel. Interfaces are either powered from the loop or require a separate mains supply. The mains power version has its own battery backup.
Features
- Loop powered devices reducing cost of installation and maintenance
- Individual addresses to maximize information and flexible cause and effect
- Each device with EN54-17 short circuit handling for enhanced system integrity
- Comprehensive range of functionality in each device variant to simplify system design
- Complete range of mounting enclosures and accessories
- Options to connect conventional fire detectors such as flame and beam detectors
- Certified to EN54-17 and EN54-18
Specifications
- Product Code : S4-34410
- Approx Weight (excluding enclosure) : 92g
- Operating Temperature : -10ºC to +60ºC
- Relative Humidity : Up to 95% – Temperature +5ºC to +45°C (Non condensing)
- Ingress Protection : IP31 for plastic box S4-34490
- Device Load Factor : Load Factor 1-4 switch inputs = 1 (maximum 200 per loop)
- Panel Compatibility : Compatible with Loop = V3.93 / V4.35 and Main Control Card = V3.94 / V4.37
- Approvals : Approval EN54-17: 2005 and EN54-18: 2005
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.092 kg |
|---|---|
| Dimensions | .90 × .93 × .23 cm |
