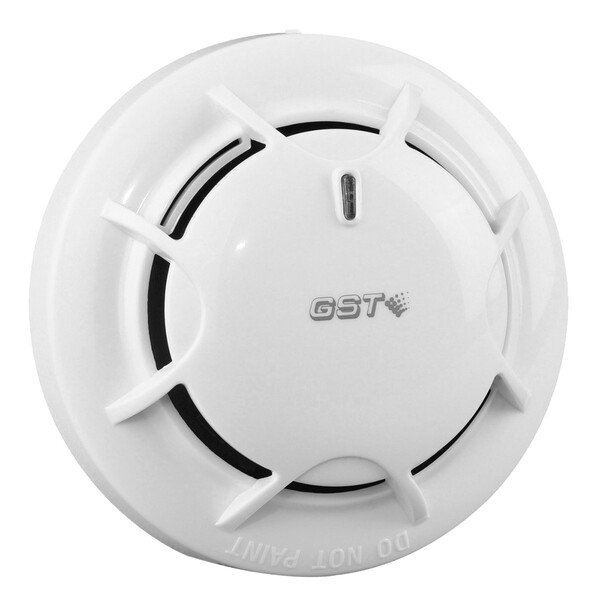

GST DC-9102E Conventional Photoelectric Smoke Detector
£10.92 (inc VAT: £13.10)
You may also need
Key features
- Supports drift compensation to enable good environmental adaptability.
- Self-diagnostic.
- Local test activation with reed switch.
- Chamber contamination checking.
- All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation.
Downloads
Summary
The DC-9102E is a photoelectric (optical) detector suitable for use in hotels, restaurants, office buildings, schools, banks, warehouses, libraries, computer rooms, switch rooms, etc.
View full overview Show less
Application
The detector supports installation on the GST DB-01 conventional detector base for standard applications, or the GST DB-01D diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the GST P-9910B device programmer.
Features
- Supports drift compensation to enable good environmental adaptability.
- Self-diagnostic.
- Local test activation with reed switch.
- Chamber contamination checking.
- All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation.
- Configurable polling LED support.
- Remote indicator output.
- Removable sensing chamber for for easy maintenance.
- 2 Programmable smoke sensitivity levels.
Specifications
- Status Indication : Red LED
- User Interface : Via LED – polling,ââ¬â¹ fault,ââ¬â¹ contamination and alarm
- Compatibility : GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor
- Reset Voltage : <1 VDC
- Reset Time : >2 s
- Alarm Levels : 2
- Connectivity : Zone connection – 2-core (polarity sensitive),ââ¬â¹ RI connection – 2-core (polarity sensitive)
- Operating Voltage : 16 VDC to 28 VDC (24 VDC typical)
- Current Consumption :
- <60 μA (Quiescent)
- ≤55 mA (Alarm)
- Detection Principle : Optical
- Sensitivity : Programmable
- Zone Length : Panel dependent
- Remote Alarm Output : 1
- Physical Dimensions : 54.5 mm (including base) x 100 mm Ø
- Net Weight : ±110 g
- Colour : White
- Mounting Type : Ceiling mount
- Material (Body) : ABS
- Cable Specification : >1.0 mm²
- No. Of Cable Cores : 2
- Terminals : 4
- Vandal Proof : No
- Operating Temperature : -10 to +50°C
- Relative Humidity : 0 to 95% noncondensing
- Environment : Indoor
- IP Rating : IP2x
- Environment Temperature :
- -10 to +50°C (Class A1/A2)
- -10 to +65°C (Class B)
- Compliancy : CE,ââ¬â¹ WEEE
- Certification : EN54-7
- Standards : LPCB
