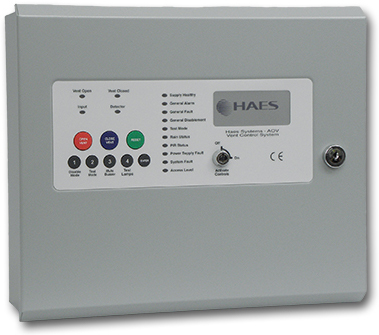

Haes AOV Smoke Vent Control Panel
Obsolete
This item is not available to purchase online.
You may also need
Key features
- Single zone conventional or Twin Wire detection circuit
- Vent status indications & controls
- 3A, 5A or 10A integral PSU
- High spec versions include all available inputs & outputs in a single, off the shelf unit (see Technical Specification)
- False alarm management mode included in all models
Downloads
Summary
The AOV control panel range has been developed to provide a comprehensive solution to smoke ventilation system control. Models include; 3 amp, 5 amp & 10 amp PSU versions for control of small, medium and larger loads.
View full overview Show less
Developed utilising the same detection circuit technology as our EN54 approved fire control panels the AOV offers a wide range of peripheral connections for the installer to utilise. The high spec models include all the available inputs and outputs in a single, off the shelf unit. No additional modules or cards are required.
Features
- Single zone conventional or Twin Wire detection circuit
- Vent status indications & controls
- 3A, 5A or 10A integral PSU
- High spec versions include all available inputs & outputs in a single, off the shelf unit (see Technical Specification)
- False alarm management mode included in all models
FAQ
Are the trigger resistors included with these AOV panels?
No.
I need a replacement controls enabled key, is this available?
Unfortunately this key is no longer available however the SWK134-WIRED is a compatible keyswitch assembly, including keys, which is compatible.
Specifications
- Main Features
- 3, 5 or 10 Amp PSU/ battery charger
- Space for up to 3.2Ah batteries (AOV-3)
- Space for up to 12Ah batteries (AOV-5/10)
- 1 Amp magnetic vent control output
- 1 x 5A timed polarity reversal actuator control outputs (AOV-3)
- 2 x 5A timed polarity reversal actuator control outputs (AOV-5/10)
- Alarm relay change over contacts
- Fault relay change over contacts (fail safe)
- Trigger input (monitored)
- Smoke detector input (conventional or Twin wire operation)
- False alarm mode
- Vent control switch inputs , Open / Close
- Fireman’s control switch inputs for On/Off, Auto setting. Disable & test modes
- Vent status indications & controls on front
- 12v dc output (100ma) for PIR power
- Additional Features for High Spec Version
- Rain sensor input (monitored)
- PIR sensor input (monitored)
- 0/10 V Positional control input 10% steps
- 0/10v Positional data output
- External Indications
- Vent Open
- Vent Closed
- Trigger Status
- Detector Status
- Supply Healthy
- General Fault
- General Alarm
- Disabled
- Test Mode
- Rain Sensor Status
- PIR Status
- PSU Fault
- System Fault
- Access Status
- External Controls
- Keyswitch or code entry ‘activate controls’
- Colour coded buttons for controls and programming
- Button functions:
- Open Vent
- Close Vent
- Reset
- Code entry keys 1, 2, 3, 4
- DIL Switch Selectable Options
- Invert magnetic vent output
- Actuator power to continuous mode
- Set smoke to Twin Wire mode
- BMS 0/10v control
- Programmable Options
- Set access code
- Input circuit options
- Latching
- Short circuit to activate
- Detector removal monitoring
- False alarm mode selection
- Actuator time setting, 10 to 150 seconds
- Disable battery monitoring
- Cabinet
- Mild steel, lockable, 20mm knockouts
- Colour ref: Radon MW334E Interpon powdercoat
- AOV-3
- Back box = 300mmW x 250mmH x 80mmD
- Lid = 308mmW x 260mmH x 23mmD
- Max battery size = 2 x 3.2Ah, 12v, SLA
- AOV-5/10
- Back box = 450mmW x 300mmH x 110mmD
- Lid = 460mmW x 310mmH x 25mmD
- Max battery size = 2 x 12Ah, 12v, SLA
