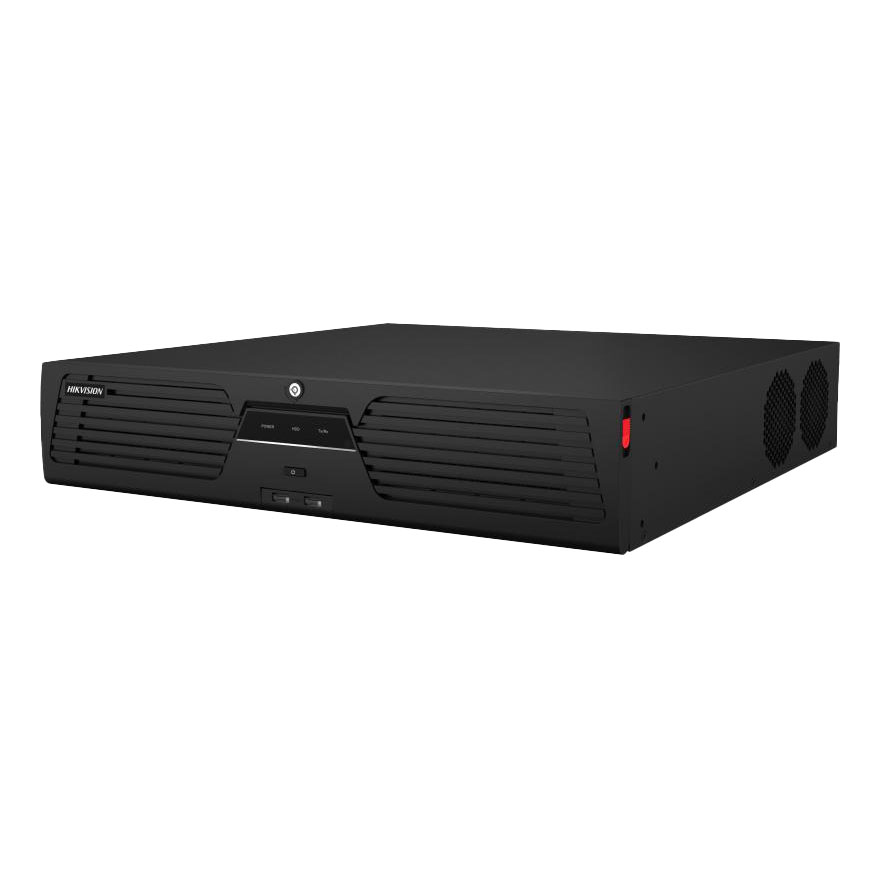

Hikvision 32 Channel 2U 8K NVR
Summary
The Hikvision DS-9632NI-M8 is a high-performance 8K Network Video Recorder (NVR) designed to meet the demanding needs of modern surveillance systems. With support for up to 32 IP camera inputs, this NVR offers exceptional video decoding capabilities, allowing for seamless monitoring and playback of high-resolution footage. Its advanced streaming technology ensures smooth live viewing even in challenging network conditions, making it an ideal choice for both professional and commercial applications.
Equipped with robust storage options and enhanced data security features, the DS-9632NI-M8 provides reliable and efficient video management. The device supports RAID configurations and dual-stream recording, significantly reducing storage requirements while maintaining video quality. Additionally, it offers versatile connectivity options, including HDMI and VGA outputs, to accommodate various display setups.
Features
- Up to 32-ch IP camera inputs
- Supports special cameras like ANPR and fisheye
- Advanced streaming technology for smooth live view
- RAID support for reliable data storage
- H.265+ compression reduces storage space
- Dual HDMI and VGA interfaces
- 16-ch synchronous playback
- POS information overlay and triggered recording
- Web access without plug-in
Specifications
- IP Video Input : 32-ch
- Incoming Bandwidth : 320 Mbps
- Outgoing Bandwidth : 400 Mbps
- HDMI 1 Output : 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz
- HDMI 2 Output : 4K (3840 × 2160)/60Hz
- VGA 1 Output : 1920 × 1080/60Hz
- VGA 2 Output : 1920 × 1080/60Hz
- Decoding Format : H.265+/H.265/H.264+/H.264
- Recording Resolution : Up to 32 MP
- Synchronous Playback : 16-ch
- Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP
- RAID Type : RAID0, RAID1, RAID5, RAID6, RAID10
- SATA Capacity : Up to 16 TB per disk
- Power Supply : 100 to 240 VAC, 50 to 60 Hz
- Working Temperature : -10 °C to 55 °C
- Dimensions : 442 × 462 × 88 mm
- Weight : ≤ 10 kg (without HDD)
- Certification : CE, FCC
Downloads
- Datasheet (Adobe PDF)
