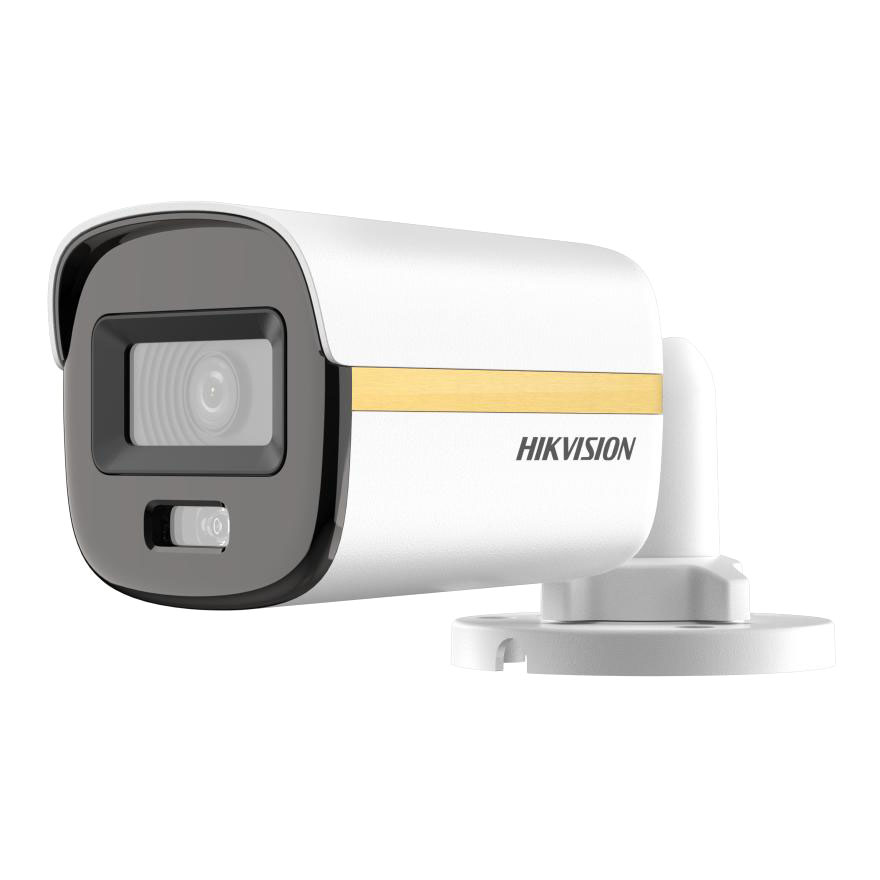

Hikvision 3K 2.8mm ColorVu Dual-light PoC Fixed Mini Bullet Camera
Summary
The Hikvision DS-2CE10KF3T-LE(2.8mm) is a 3K ColorVu PoC Fixed Mini Bullet Camera designed to deliver high-quality imaging with a resolution of 2960 × 1665. It offers excellent low-light performance and 24/7 color imaging with an F1.0 aperture. The camera features 130 dB true WDR technology for clear imaging against strong backlight and 3D DNR technology for clean and sharp images. With a fixed focal lens of 2.8 mm, it provides a wide field of view and is equipped with smart-hybrid lighting options for optimized security. The camera is water and dust resistant, making it suitable for various environmental conditions.
Features
- Excellent low-light performance
- 3D DNR technology delivers clean and sharp images
- 2.8 mm and 3.6 mm fixed focal lens options
- Up to 20 m IR and white light distance for bright night imaging
- Water and dust resistant (IP67)
- Smart-Hybrid light for flexible lighting options
Specifcations
Camera
- Image Sensor : 3K CMOS
- Signal System : PAL/NTSC
- Max. Resolution : 2960 (H) × 1665 (V)
- Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
- Lens Type : 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV : 2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 139°
- Lens Mount : M12
Illuminator
- Supplement Light Type : Smart, IR, White Light
- Supplement Light Range : IR: Up to 20 m, White Light: Up to 20 m
- Smart Supplement Light : Yes
- Frame Rate : 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- Privacy Mask : 4 programmable privacy masks/8 programmable privacy masks
- Wide Dynamic Range (WDR) : ≥130 dB
- Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
- AGC : Yes
- Day/Night Mode : Auto/Color
- White Balance : Auto/Outdoor/Global/Manual
- Image Enhancement : WDR, BLC, HLC, Global, HLS
- Noise Reduction : 3D DNR/2D DNR
- Image Settings : Brightness, Contrast, Mirror, Smart Light, Anti-Banding
Interface
- Video Output : 1 HD analog output
Event
- Motion Detection : 4 programmable motion areas
General
- Power : 12 VDC±25%, PoC.af, max. 5.7 W
- Language : English
- Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Material : Metal
- Communication : HIKVISION-C
- Dimension : 161.1 mm × 68.4 mm × 65.2 mm (6.34″ × 2.69″ × 2.57″)
- Weight : Approx. 440 g (0.97 lb.)
- Approval : IP67
Downloads
- Datasheet (Adobe PDF)
