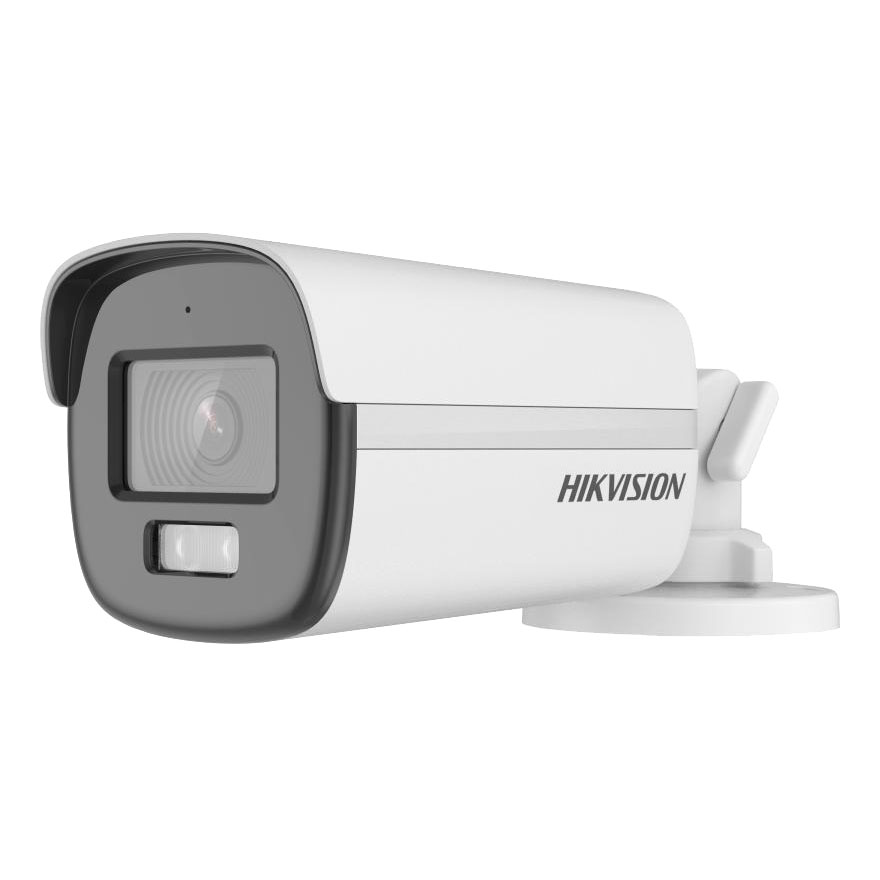

Hikvision 3K 3.6mm ColorVu Smart Hybrid Light Fixed Bullet Camera
Summary
The Hikvision DS-2CE12KF0T-LFS(3.6mm) is a 3K Smart Hybrid Light Fixed Bullet Camera designed to deliver high-quality imaging with a resolution of 2960 × 1665. It offers 24/7 color imaging with an F1.0 aperture and features a 3.6 mm fixed focal lens. The camera supports up to 40 m IR and white light distance for bright night imaging and provides high-quality audio with audio over coaxial cable and a built-in microphone. With one port for four switchable signals (TVI/AHD/CVI/CVBS) and IP67 protection, this camera is ideal for versatile and reliable surveillance applications.
Features
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
- Smart-Hybrid light for flexible lighting options
Specifications
Camera
- Image Sensor : 3K CMOS
- Signal System : PAL/NTSC
- Resolution : 2960 (H) × 1665 (V)
- Frame Rate : TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps; AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps; CVI: 4 MP @25 fps/30 fps; CVBS: PAL/NTSC
- Min. Illumination : 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens : 3.6 mm fixed focal lens
- Field of View : Horizontal FOV: 94°, Vertical FOV: 50°, Diagonal FOV: 112°
- Lens Mount : M12
- Light Alarm : Solid Light Alarm (White Light)
- Day & Night : ICR
- WDR : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Illuminator
- Supplement Light Type : IR, White Light
- Supplement Light Range : IR: Up to 40 m, White Light: Up to 40 m
- Smart Supplement Light : Yes
- White Light Image Mode : Auto/Off
- AGC : Yes
- Day/Night Mode : Auto
- White Balance : Auto/Outdoor/Global/Manual
- AE Mode : DWDR, BLC, HLC, Global, HLS
- Noise Reduction : 2D DNR
- Language : English
- Function : Brightness, Smart IR, Sharpness, Anti-Banding, AGC
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
- Audio In : Built-in mic
General
- Power : 12 VDC ± 25%, max. 5.2 W
- Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection Level : IP67
- Material : Metal
- Communication : HIKVISION-C
- Dimension : 194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
- Weight : Approx. 500 g (1.1 lb.)
Downloads
- Datasheet (Adobe PDF)
