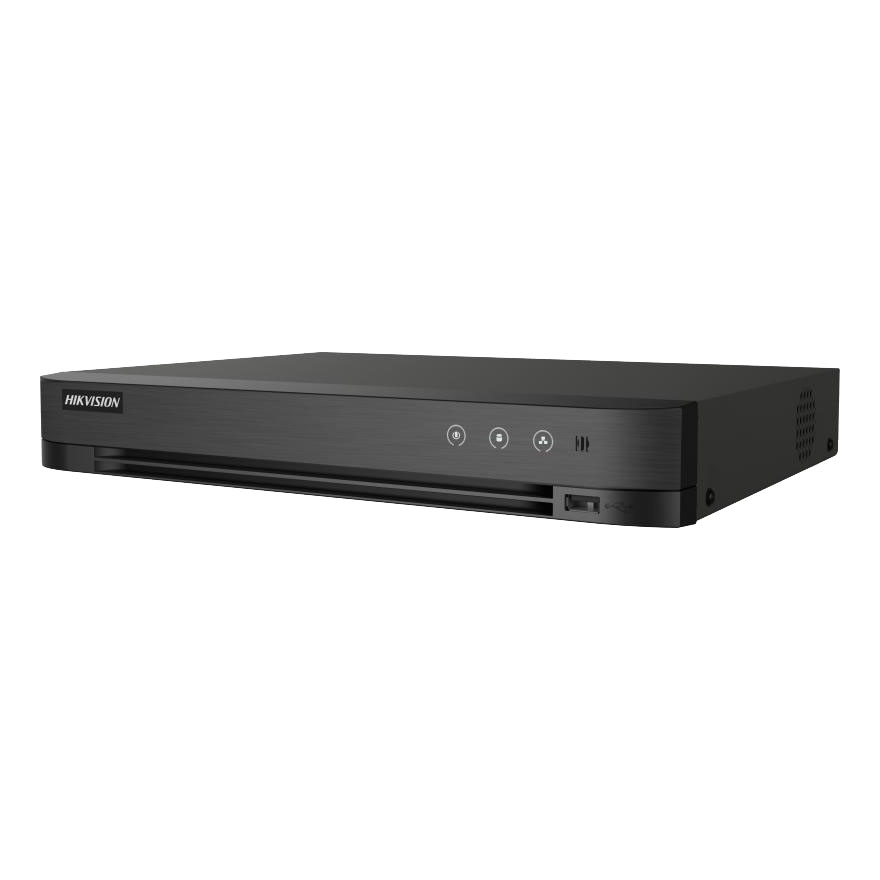

Hikvision 4 Channel 4K 1U H.265 AcuSense DVR
Summary
The Hikvision iDS-7204HTHI-M1/S(C) is a versatile TURBO HD DVR designed to support a wide range of video compression standards and input types, including HDTVI, AHD, CVI, CVBS, and IP video inputs. It offers advanced features such as H.265 Pro+ video compression for efficient storage, audio via coaxial cable, and support for up to 8 IP camera inputs with resolutions up to 8 MP. With its robust design, the DVR supports long-distance signal transmission and high-capacity storage, making it suitable for various surveillance applications.
Features
- Up to 8-ch IP camera inputs (up to 8 MP)
- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
- Up to 10 TB capacity per HDD
- Smart search for efficient playback
- Support multiple VCA events for both analog and smart IP cameras
- Hik-Connect & DDNS for easy network management
Specifications
Compression and Recording
- Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution : 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate : Main stream: 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps, 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Video Bitrate : 32 Kbps to 16 Mbps
- Dual-stream : Support
- Stream Type : Video, Video & Audio
- Audio Compression : G.711u
- Audio Bitrate : 64 Kbps
Video and Audio
- IP Video Input : 4-ch (up to 8-ch), Up to 8 MP resolution
- Analog Video Input : BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Total Bandwidth : 96 Mbps
- HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Network & Ethernet Access
- Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection : 32
- Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Storage and Playback
- SATA Capacity : 1 SATA interface, Up to 10 TB capacity for each disk
General
- Power Supply : 12 VDC, 2 A
- Consumption : ≤ 10 W (without HDD)
- Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight : ≤ 1.8 kg (without HDD, 4.0 lb.)
