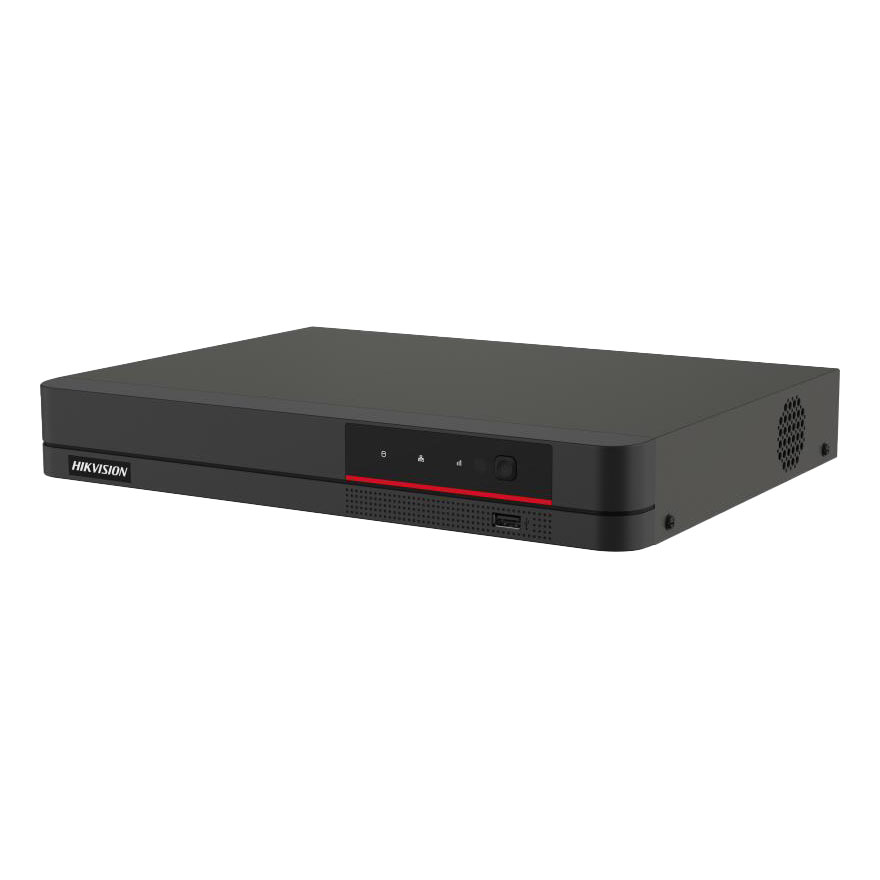

Hikvision 4 Channel Mini 1U 4 POE 4G NVR
Summary
The Hikvision DS-7604NI-K1/4P/4G (C) is a robust 4G NVR designed to provide seamless video surveillance solutions. With its capability to support up to 4 IP camera inputs and plug-and-play functionality through 4 PoE interfaces, this NVR ensures easy installation and reliable performance. It offers high bandwidth for both incoming and outgoing data, making it suitable for various surveillance environments.
Equipped with advanced video compression technologies such as H.265+, the DS-7604NI-K1/4P/4G (C) significantly reduces storage requirements while maintaining high video quality. Its smart functions, including Motion Detection 2.0 and multiple VCA events, enhance security monitoring and efficiency. Additionally, the device supports 4G wireless networks, ensuring continuous connectivity and remote management capabilities.
Features
- Up to 4-ch IP camera inputs
- Plug & play with PoE interfaces
- Up to 40 Mbps incoming bandwidth
- 80 Mbps outgoing bandwidth
- H.265+/H.265/H.264+/H.264 video compression
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- 4G wireless network support
- Network keep alive and data monitoring
- Simultaneous HDMI and VGA outputs
- 1 SATA interface for HDD connection
- Smart search and playback
- Motion Detection 2.0 on all channels
- Multiple VCA events support
- Hik-Connect for network management
Specifications
- Motion Detection 2.0 : Human/Vehicle Analysis
- IP Video Input : 4-ch
- Incoming Bandwidth : 40 Mbps
- Outgoing Bandwidth : 80 Mbps
- HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz
- VGA Output : 1-ch, 1920 × 1080/60 Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding Format : H.265+/H.265/H.264+/H.264
- Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p
- Synchronous Playback : 4-ch
- Decoding Capability : 1-ch@8 MP (30 fps)
- Stream Type : Video, Video & Audio
- Audio Compression : G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
- Network Interface : 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP
- Remote Connection : 32
- PoE Interface : 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power Standard : IEEE 802.3 af/at
- Wireless Parameter : 1 micro SIM card slot
- SMA Antenna Interface : 1 4G interface
- Wireless Standard : GSM/EDGE: 850/900/1800MHz
- SATA Capacity : Up to 8 TB capacity for each disk
- USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Power Supply : 48 VDC, 1.875 A
- Consumption : ≤ 10 W (without HDD and PoE off)
- Working Temperature : -10 °C to 55 °C
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 320 × 240 × 48 mm
- Weight : ≤ 1.18 kg (without HDD)
