HikVision 4MP 2.8mm AcuSense In-Ceiling Fixed Mini Dome Network Camera

Hikvision 4MP 2.8mm AcuSense In-Ceiling Fixed Mini Dome Network Camera

Login or register to see prices
SKU: DS-2CD2E43G2-U(2.8MM) Category: Brand:

Summary

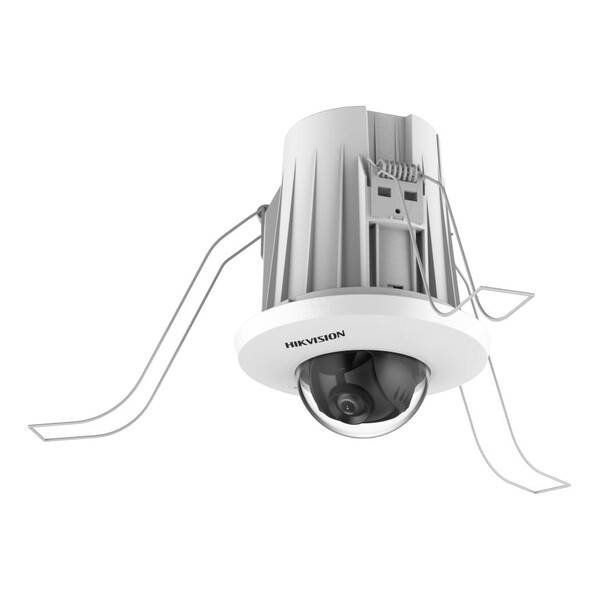

The Hikvision DS-2CD2E43G2-U(2.8mm) is a 4 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera designed to enhance security with advanced features. Utilising deep learning algorithms, this camera focuses on human and vehicle target classification, significantly improving alarm efficiency and effectiveness. With high-quality imaging, excellent backlight handling, and built-in audio capabilities, it is ideal for various surveillance applications.

Features

  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security

Specifications

Camera

  • Image Sensor : 1/3″ Progressive Scan CMOS
  • Max. Resolution : 2688 × 1520
  • Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON)
  • Shutter Time : 1/3 s to 1/100,000 s
  • Angle Adjustment : Tilt: 0° to 75°
  • Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
  • Aperture : F1.6
  • Lens Mount : M12

Video

  • Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream : 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression : Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264

Audio

  • Environment Noise Filtering : Yes
  • Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Network

  • Simultaneous Live View : Up to 6 channels
  • API : Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
  • Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • User/Host : Up to 32 users


  • Wide Dynamic Range (WDR) : 120 dB
  • Privacy Mask : 4 programmable polygon privacy masks
  • Day/Night Switch : Day, Night, Auto, Schedule
  • Image Enhancement : BLC, HLC, 3D DNR

Interface

  • Built-in Microphone : Yes
  • On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key : Yes
  • Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Smart Event : Face detection
  • Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

  • Power : 12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block; PoE: IEEE 802.3af, 36 V to 57 V, Class 3, 0.12 A to 0.07 A, max. 4.2 W
  • Material : Plastic body
  • Dimension : Ø 93.9 mm × 117.5 mm (Ø 3.7″ × 4.6″)
  • Package Dimension : 135 × 135 × 183 mm (5.3″ × 5.3″ × 7.2″)
  • Weight : Approx. 155 g (0.3 lb.)
  • Storage Conditions : -10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
