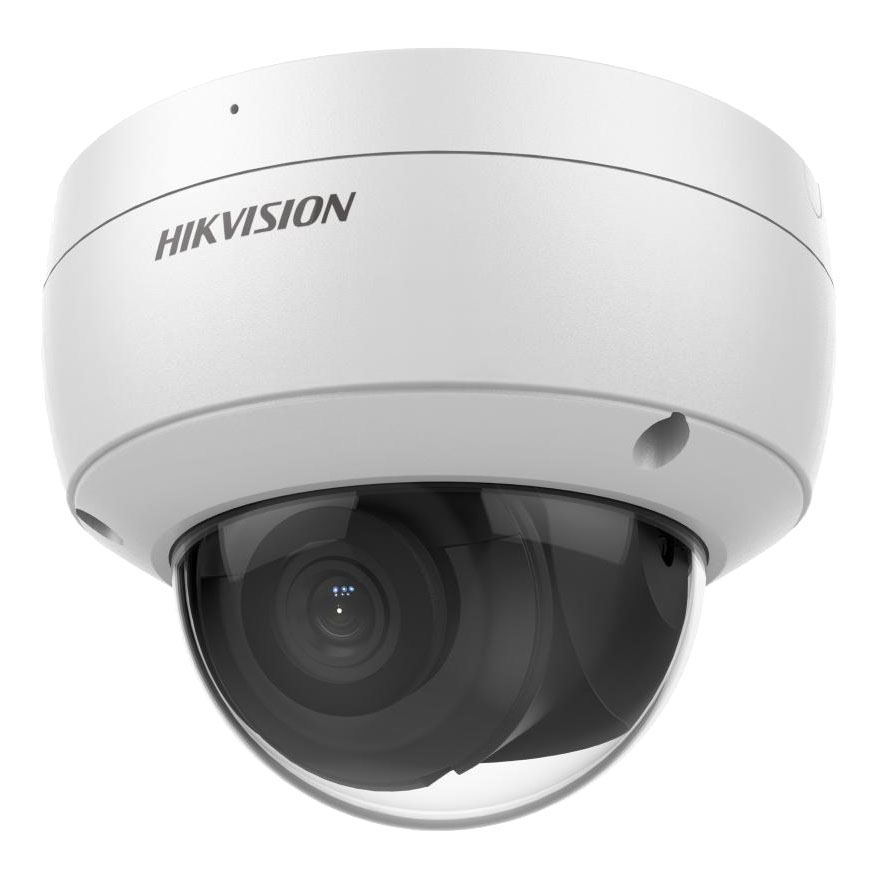

Hikvision 4MP 4mm AcuSense Fixed Dome Network Camera

Specifications

Camera

• Image Sensor : 1/3″ Progressive Scan CMOS
• Min. Illumination : Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Slow Shutter : Yes
• Wide Dynamic Range : 120 dB

Lens

• Focal Length & FOV : 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
• Lens Type : Fixed focal lens, 2.8, 4, and 6 mm optional
• Aperture : F1.4
• Lens Mount : M12
• Iris Type : Fixed

Illuminator

• IR Range : Up to 30 m
• IR Wavelength : 850 nm
• Smart Supplement Light : Yes
• Supplement Light Type : IR

Video

• Max. Resolution : 2688 × 1520
• Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression : Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264

Audio

• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host : Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser : Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+


• SNR : ≥ 52 dB
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• Image Parameters Switch : Yes
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm : 1 input, 1 output (max. 12 VDC, 30 mA)
• Audio : 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Built-in Microphone : Yes
• On-Board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Reset Key : Yes
• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event : Scene change detection
• Deep Learning Function : Face Capture, Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
• Power Consumption and Current : 12 VDC: 0.4 A, max. 5 W; PoE (802.3af, 36 V-57 V), 0.20 A to 0.15 A, max. 6.5 W
• Power Interface : Ø 5.5 mm coaxial power plug
• Material : Metal upper cover and base
• Dimension : Ø 121.4 mm × 92.2 mm (Ø 4.8″ × 3.6″)
• Package Dimension : 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight : Approx. 580 g (1.3 lb.)
• With Package Weight : Approx. 820 g (1.8 lb.)
• Linkage Method : Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
• Language : 33 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset : Yes
• Firmware Version : V5.5.112
• Approval : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015); UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1); CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
