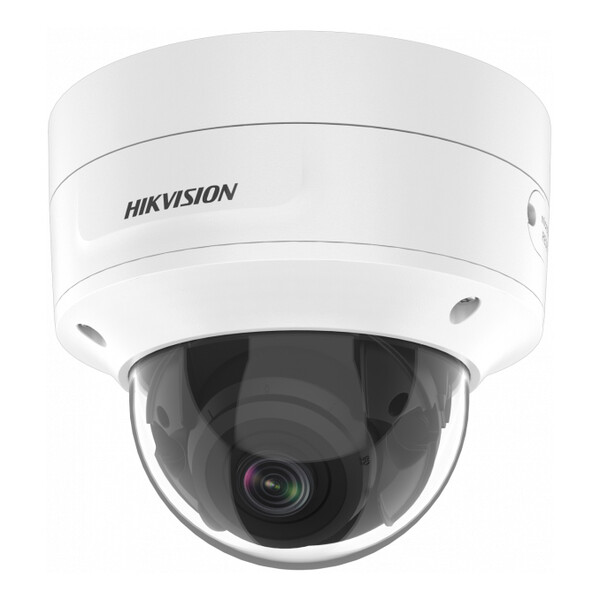

Hikvision 4MP AcuSense 2.8-12mm Motorized Varifocal Dome Network Camera

Specifications

Camera

• Image Sensor : 1/3″ Progressive Scan CMOS
• Min. Illumination : Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Slow Shutter : Yes
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Wide Dynamic Range : 120 dB
• Power-off Memory : Yes

Lens

• Lens Type : Varifocal lens, motor-driven lens, 2.8 to 12 mm
• Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
• Aperture : F1.4
• Lens Mount : Ø 14
• Iris Type : Fixed
• DORI : Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m; Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Illuminator

• IR Range : Up to 40 m
• IR Wavelength : Yes
• Smart Supplement Light : Yes
• Supplement Light Type : IR

Video

• Max. Resolution : 2688 × 1520
• Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression : Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile

Audio

• Environment Noise Filtering : Yes
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• User/Host : Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser : Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+


• SNR : ≥ 52 dB
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• Image Parameters Switch : Yes
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

• Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Audio : 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• On-Board Storage : Built-in micro SD/SDHC/SDXC slot, up to 512 GB
• Hardware Reset : Yes
• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event : Face Capture, Perimeter Protection, Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage Method : Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

General

• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply : 12 VDC ± 25%, PoE: 802.3af, Class 3
• Power Consumption and Current : 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
• Power Interface : Ø 5.5 mm coaxial power plug
• Camera Material : Metal
• Camera Dimension : Ø 153.5 mm× 133.1 mm (Ø 6.0″ × 5.2″)
• Package Dimension : 244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
• Camera Weight : Approx. 845 g (1.9 lb.)
• With Package Weight : Approx. 1714 g (3.8 lb.)
• Web Client Language : 33 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software Reset : Yes
• Firmware Version : V5.5.112

Approval

• EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)
• Environment Protection : CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection : IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
