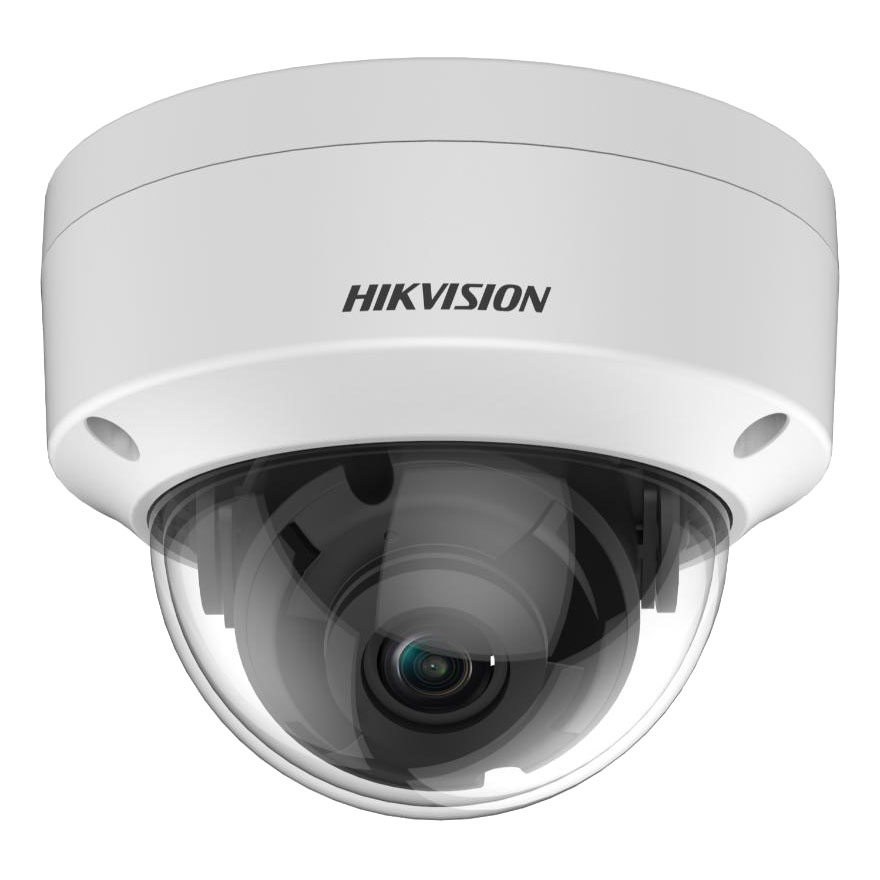

Hikvision 5MP 2.8mm Vandal PoC Fixed Dome Camera
Summary
The Hikvision DS-2CE57H0T-VPITE(2.8mm)(C) is a 5 MP Vandal-proof PoC Fixed Dome Camera designed for robust security applications. It offers high-quality imaging with a resolution of 2560 × 1944 and features a fixed focal lens available in 2.8 mm and 3.6 mm options. The camera provides excellent night imaging with an IR distance of up to 20 meters and is both water and dust resistant (IP67) as well as vandal resistant (IK10), making it ideal for challenging environments.
Features
- Water and dust resistant (IP67)
- Vandal resistant (IK10)
- Digital WDR for enhanced image quality
- 2D DNR for noise reduction
- Transmits HD video and power over the same coaxial cable (PoC)
Specifications
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2560 (H) × 1944 (V)
- Min. Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night : ICR
- Angle Adjustment : Pan: 0 to 355°, Tilt: 0 to 75°, Rotation: 0 to 355°
- Signal System : PAL/NTSC
Lens
- Lens Type : 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV : 2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124°; 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103°
- Lens Mount : M12
- Image Parameters Switch : STD/HIGH-SAT
- Image Settings : Brightness, Sharpness, Smart IR
- Frame Rate : 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
- Day/Night Mode : Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) : Digital WDR
- Image Enhancement : DWDR, BLC, HLC, Global
- Noise Reduction : 2D DNR
- White Balance : Auto/Manual
- AGC : Yes
Interface
- Video Output : 1 HD analog output
General
- Material : Metal
- Dimension : 82.4 mm × Ø 111 mm (3.2″ × Ø 4.4″)
- Weight : Approx. 440 g (0.97 lb.)
- Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Communication : HIKVISION-C
- Language : English
Power Supply
- Power Supply : 12 VDC ±25%/PoC.af
- Consumption : Max. 2.6 W
IR Range
- IR Range : Up to 20 m
Approval
- Protection : IP67, IK10
Downloads
- Datasheet (Adobe PDF)
