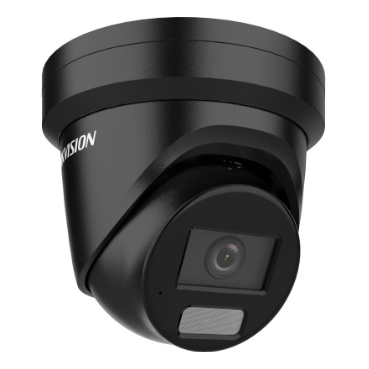

Hikvision 8MP 2.8mm Smart Hybrid Light with ColorVu Fixed Turret Network Camera in Black

Specifications

Camera

• Image Sensor : 1/1.8″ Progressive Scan CMOS
• Max. Resolution : 3840 × 2160
• Min. Illumination : Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV : 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
• Lens Mount : M16
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field : 2.8 mm: 3.3 m to ∞

Illuminator

• Supplement Light Type : IR, White Light
• Supplement Light Range : Up to 40 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream : 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream : 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression : Main stream: H.265/H.264/H.264+/H.265+
• Video Bit Rate : 32 Kbps to 16 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR, VBR

Audio

• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Built-in Microphone : Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host : Up to 32 users
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser : Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• SNR : ≥ 52 dB
• Wide Dynamic Range (WDR) : 130 dB
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key : Yes

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage : Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
• Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection

Deep Learning Function

• Face Capture : Yes
• Perimeter Protection : Line crossing, intrusion, region entrance, region exiting, support alarm triggering by specified target types (human and vehicle)

General

• Power : 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W
• Material : Cover: Metal, main body: Metal
• Dimension : Ø 138.3 mm × 115.4 mm (Ø 5.4″ × 4.5″)
• Package Dimension : 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
• Weight : Approx. 770 g (1.7 lb.)
• With Package Weight : Approx. 1040 g (2.3 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function : Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC : CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Safety : UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment : CE-RoHS: 2011/65/EU
• Protection : IP67: IEC 60529-2013
