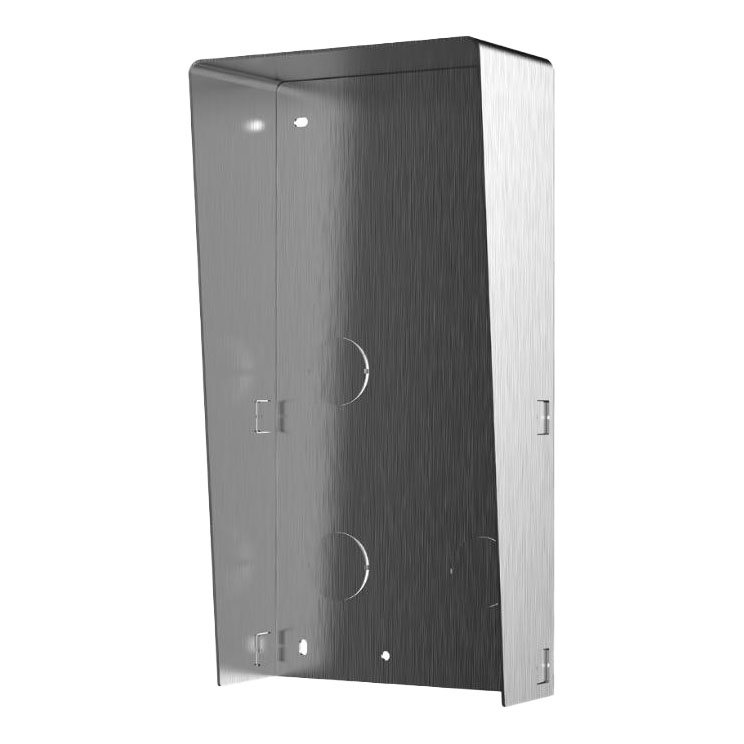

Hikvision DS-KABD8003-RS2/S Rain Shield of Module Door Station
Summary
The Hikvision DS-KABD8003-RS3/S Video Intercom Module Door Station Protective Shield provides essential protection for modular video intercom systems. This robust stainless steel enclosure is specifically designed to safeguard 3-module surface-mounted door stations from environmental elements and potential vandalism.
Engineered for demanding outdoor environments, this protective shield ensures reliable operation across extreme temperature ranges while maintaining the aesthetic appeal of your video intercom installation. The shield’s precision-engineered design allows for seamless integration with Hikvision’s modular door station ecosystem, providing installers with a versatile solution for various residential and commercial applications.
Features
- Robust stainless steel construction for superior corrosion resistance
- Convenient surface mounting design for easy installation
- Compatible with DS-KD8003-IME1 and DS-KD8003-IME2 modular door stations
- Weatherproof protection for outdoor installations
- Compact profile with optimized dimensions
- High humidity tolerance up to 95%
- Vandal-resistant design for enhanced security
- Professional appearance suitable for commercial and residential use
FAQ
Which door stations are compatible with this protective shield?
The DS-KABD8003-RS3/S is specifically designed for the 3-module surface mounting of DS-KD8003-IME1 and DS-KD8003-IME2 modular door stations.
Can this shield be used in extreme weather conditions?
Yes, the protective shield is designed to operate in temperatures ranging from -40°C to +60°C and can withstand humidity levels up to 95%, making it suitable for harsh outdoor environments.
What material is the protective shield made from?
The shield is constructed from high-quality stainless steel, providing excellent durability, corrosion resistance, and vandal protection.
What are the installation requirements?
The shield features a convenient surface mounting design that allows for straightforward installation on various surfaces. Professional installation is recommended to ensure proper alignment with the door station modules.
Is the protective shield suitable for commercial applications?
Yes, the robust stainless steel construction and professional appearance make it ideal for both residential and commercial video intercom installations.
Specifications
- Working Temperature : -40°C to +60°C (-40°F to 140°F)
- Working Humidity : 10% to 95%
- Weight : 702.3 g
- Dimension W X H X D : 116.4 × 325.8 × 58 mm (4.58″ × 12.83″ × 2.28″)
- Material : Stainless steel
- Model Number : DS-KABD8003-RS3/S
- Compatible Door Station Modules : DS-KD8003-IME1(B)/NS, DS-KD8003Y-IME2/S, DS-KD8003-IME1(B)/S, DS-KD8003Y-IME2/NS
- Additional Accessories : DS-KD-PMR
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|
