Hikvision DS-KIS702Y 2 Wire Intercom Kit
Summary

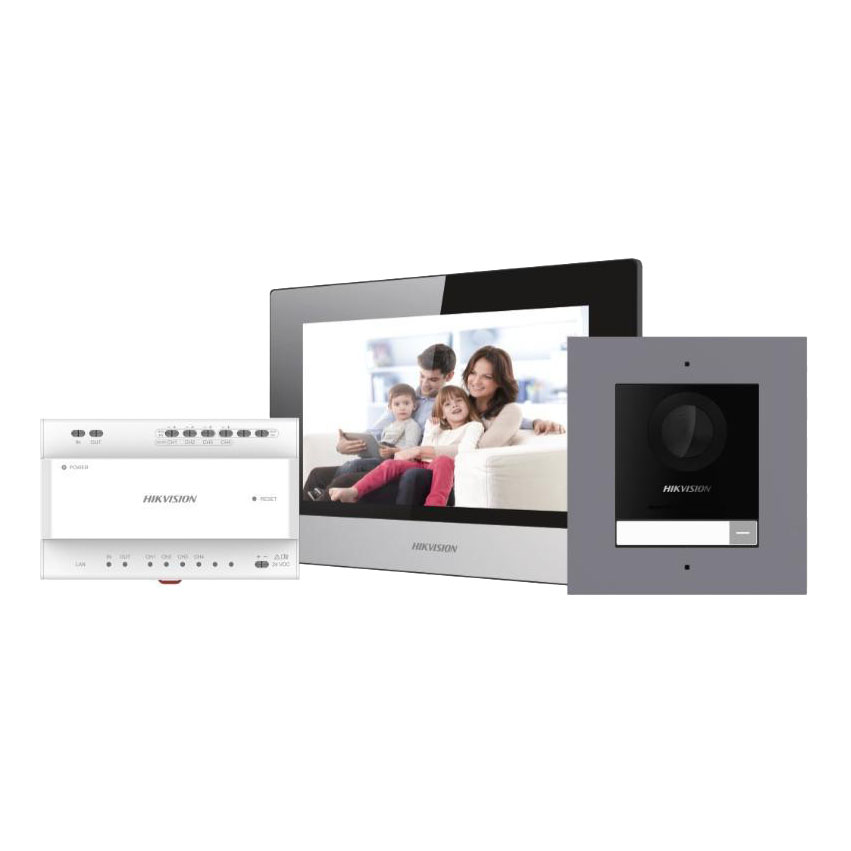

The Hikvision DS-KIS702Y is a Villa Two Wire Bundle designed for efficient and secure video intercom communication in villas or houses. This bundle includes a 2-wire digital IP video intercom system with a single call button for easy operation. The package comprises the DS-KD8003Y-IME2/Surface, DS-KH6320Y-WTE2, DS-KAD704Y, DS-KAW30-2N, and a 16GB TF card, along with a power adapter. This system offers high-definition video, reliable audio communication, and robust security features.
Features
- Power adapter included in the package
- Embedded Linux operation system for both door and indoor stations
- High-definition video and reliable audio communication
- IP65 protection level for outdoor components
Specifications
Door Station
System Parameters
- Processor : Embedded microcontroller
- Operation System : Embedded Linux operation system
- Operation Mode : One touch key
Video Parameters
- Camera : 2MP super definition camera
- Resolution : Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
- Night Vision : Support low light and IR light supplement mode
- Backlight Compensation : Support
- Digital Noise Reduction : Support
- WDR : True WDR
- Field of View : Horizontal 146°, vertical 82°
- Video Compression Standard : H.264
- Stream : Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1
- Motion Detection : Support
- Flash-avoid Frequency : 50 Hz, 60 Hz
Audio Parameters
- Audio Input : Built-in omnidirectional microphone
- Audio Output : Loudspeaker, 20 cm sound effect > 80 db
- Audio Quality : Noise suppression and echo cancellation
- Audio Compression Standard : G.711 U
- Audio Compression Rate : 64 Kbps
- Audio Intercom : Full-duplex two-way audio intercom
Capacity Parameters
- Sub Door Station Capacity : 16
Device Interface
- RS-485 : 1 (for Hikvision’s sub module communication)
- Debugging Port : 1
- Alarm Input : 4 (2 exit buttons and 2 door contacts by default)
- Lock Control : 2 (2 relay, max to 30 VDC, 2 A)
- TAMPER Switch : 1
- Power Interface : 12 VDC power output (12 V, 500 mA Max.)
General
- Working Temperature : -40 °C to 60 °C (-40 °F to 140 °F)
- Working Humidity : 10% to 90%
- Installation : Surface mounting
- Protection Level : IP 65
- Button : 1
- Power Input : Powered by KAD704Y or KAD706Y series distribution
Indoor Station
System Parameters
- Operation System : Embedded Linux operation system
- Memory : 128 MB
- Flash : 32 MB
Display Parameters
- Display Screen : 7-inch TFT LCD
- Display Resolution : 1024 × 600
- Operation Method : Capacitive touch
Audio Parameters
- Audio Input : Built-in omnidirectional microphone
- Audio Output : Built-in loudspeaker
- Audio Quality : Noise suppression and echo cancellation
- Volume : Local or software control
- Audio Compression Standard : G.711 U, G.711 A
- Audio Compression Rate : 64 Kbps
Network Parameters
- Wired Network : Two-wire network
- Wireless Network : Wi-Fi 802.11b/g/n
- Protocol : TCP/IP, SIP, RTSP
Device Interface
- Network Interface : Two-wire interface
- RS-485 : 1
- Alarm Input : 8 zones alarm input
- Relay Output : 2
- TF Card : Support, Max. 128 GB
General
- Power Supply : Powered by KAD704Y or KAD706Y series distributor
- Power Consumption : ≤ 4 W
- Working Temperature : -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity : 10% to 90%
- Dimensions (W × H × D) : 200 mm × 140 mm × 23.6 mm (7.87″ × 5.51″ × 0.93″)
