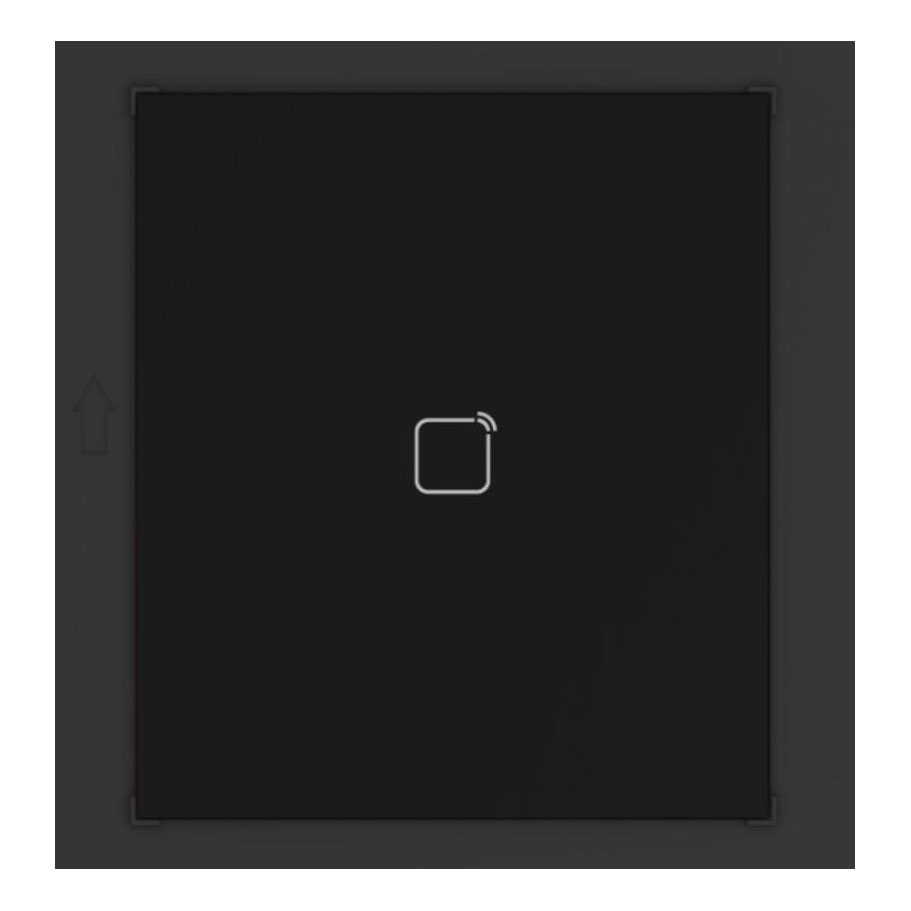

Hikvision KD8 Series Pro Modular Door Station
Summary
The Hikvision DS-KD-M is a KD8 Series Pro Modular Door Station designed to enhance access control with its M1 card reader module. It supports door unlocking via card swiping and card issuing, providing a secure and efficient solution for entry management. With an IP65 protection level, this module is suitable for outdoor use, offering durability and reliability in various environmental conditions.
Features
- Backlight compensation behind the module
- Easy to use and extend
- Flush mounting and surface mounting options
Specifications
System Parameters
- Operation System : Linux
- Processor : Embedded high performance processor
Device Interfaces
- RS-485 : 1
General
- Installation : Flush mounting, surface mounting
- Protective Level : IP65
- Working Temperature : -40 °C to 55 °C (-40 °F to 131 °F)
- Working Humidity : 10% to 95% (non-condensing)
- Dimension (W × H × D) : 98.5 mm × 100 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
- Net Weight : 160 g
- Gross Weight : 421 g
- Power Consumption : 0.8 W
- Application Environment : Outdoor
Downloads
- Datasheet (Adobe PDF)
