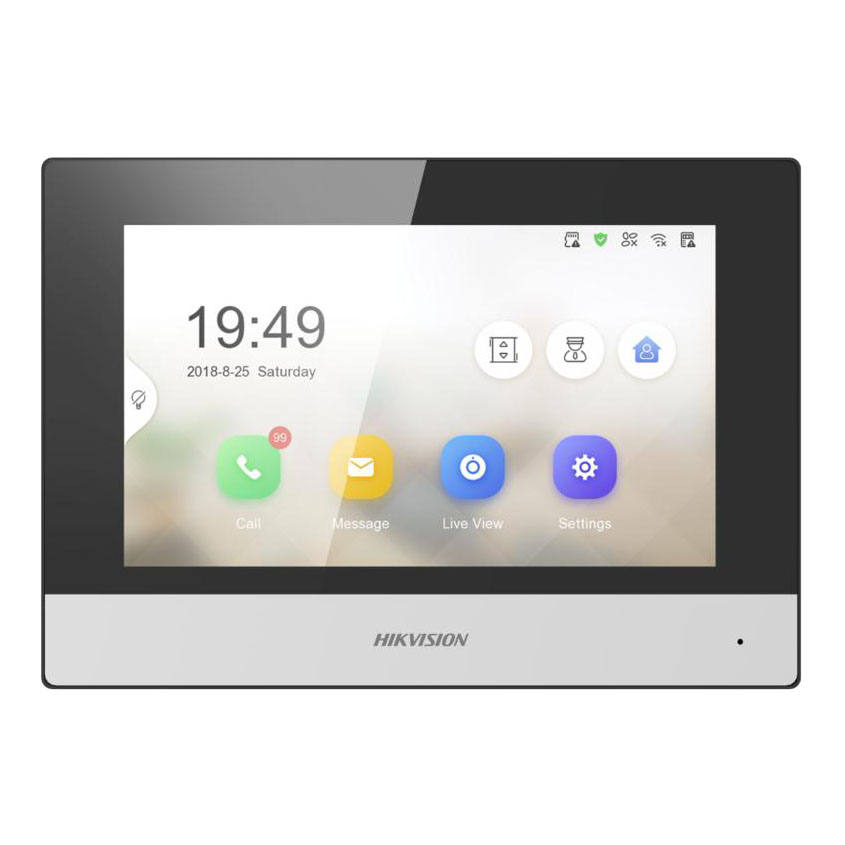

Hikvision KH6 Series IP-Based 7-inch TFT Touch Screen Indoor Station
Summary
The Hikvision DS-KH6320-WTE1 is a Network Indoor Station designed to provide seamless video and audio communication through its 7-inch touch screen interface. This IP indoor station simplifies deployment by allowing the entire video intercom system to be set up independently, reducing installation time and cost. With the Hik-Connect APP, users can remotely view, chat, and grant access to visitors via their mobile phones. The device also integrates with other control systems such as CCTV and elevator control, enhancing security and convenience.
Features
- Easy to use without a PC
- Easy wizard for quick setup
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with an alarm system and notify the center to handle in time
- Elevator access control
Specifications
System Parameters
- Operation System : Linux
- ROM : 32 MB
- RAM : 128 MB
- Processor : Embedded high performance processor
Display Parameters
- Screen Size : 7-inch
- Operation Method : Capacitive touch screen
- Type : Colorful TFT
- Resolution : 1024 × 600
Audio Parameters
- Audio Input : 1 built-in omnidirectional microphone
- Audio Compression Standard : G.711U/G.711A
- Audio Output : 1 built-in loudspeaker
- Audio Compression Bitrate : 64 Kbps
- Audio Quality : Noise suppression and echo cancellation
- Volume Adjustment : Adjustable
Capacity
- Message Capacity : TF card inserted: 200 captured pictures, 200 alarm records; Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice Capacity : 200
- Linked Indoor Extensions Capacity : 16
- Linked Doorphone Capacity : 17
- Linked Network Camera Capacity : 16
Network Parameters
- Network Protocol : TCP/IP, SIP, RTSP
- Wi-Fi : 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Device Interfaces
- Alarm Input : 8
- Network Interface : 1 RJ-45 10/100 Mbps self-adaptive
- RS-485 : 1 RS-485 (Half duplex)
- TF Card : Support TF card, up to 128 G
- Alarm Output : 2
- Lock Control : 2 relays, Max. 30 VDC 0.3 A
General
- Installation : Surface mounting
- Weight : Net weight: 355 g (0.8 lb); Gross weight: 683 g (1.5 lb)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 10% to 90% (no-condensing)
- Dimension (W × H × D) : 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
- Power Consumption : ≤ 5 W
- Language : English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
