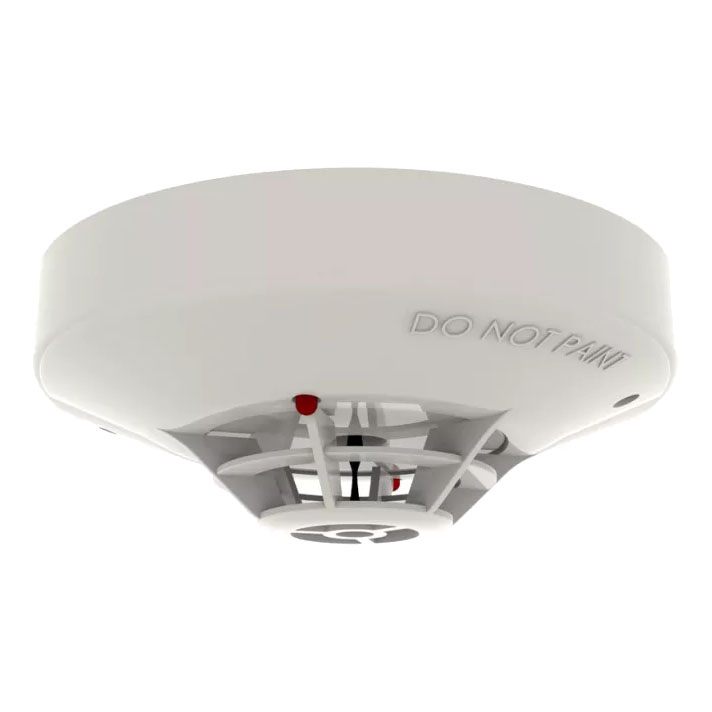

Hochiki CDX Conventional Fixed 60 Degree Heat Detector
£18.96
Summary
The Hochiki DFJ-AE3 is a 60 °C Fixed Temperature Heat Detector designed for environments where medium ambient temperatures are present, such as drying rooms, or where smoke detectors are unsuitable due to steam or cooking fumes, like in kitchens. Utilizing a thermistor and linearising circuit, it offers an accurate linear response. The DFJ-AE3 supports a wide range of bases for various applications and is compatible with most conventional systems. It also features a third terminal for remote indicator output, making it a versatile choice for different installation needs.
Features
- Electronic linear heat detection
- Remote indicator output
- Wide voltage range (9.5 to 30 V DC)
- Twin fire LEDs allow 360° viewing
- Fixed temperature detector
- Full range of mounting bases
- Approved by LPCB & VdS
- Available in white
Specifications
- Ordering Codes :
- DFJ-AE3 : Ivory
- DFJ-AE3(WHT) : White
- Operating Voltage : 9.5 – 30 VDC
- Quiescent Current : 35 µA
- Maximum Current In Alarm (Typical) : 40 mA
- IP Rating : IP63
- Remote Indicator Drive (Typical) : 20 mA (max) / 9.5 – 14 mA
- Maximum Humidity : 95% RH – Non-condensing (at 40 °C)
- Operating Temperature Range : -10 °C to +50 °C
- Storage Temperature Range : -30 °C to +70 °C
- Colour / Case Material : Ivory or White / Modified Polycarbonate
- Compatible Bases :
- YBN-R6
- YBN-R/6SK
- YBO-R/6R
- YBO-R/6RS
- YBO-R/6RN
- YBO-R/6PA
- Base Fixing Centres (mm) : 48 ~ 74
- Weight (g) / Dimensions (mm) : 76 / Ø 100 x H 38
- Approvals To (EN54:2000) : Class A1 & A1S LPCB
- VdS : G204046
